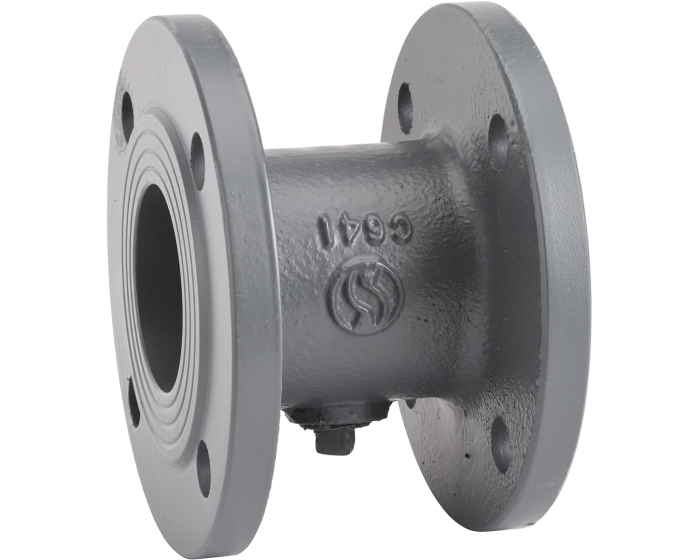

1196 Cast iron sleeve to fit in EN558-S14
The cast iron sleeve 1196 series is designed for TTV butterfly valves to fit in EN 558 series 14 (DIN 3202 F4) spacing , with 1/2" BSP drain, supplied without flange and bolts.
![main product photo](https://www.syveco.com/media/catalog/product/cache/582ed6748c10bbb99b236b27a124fb97/1/1/1196-manchette-ecartement-VP-DIN.jpg)
Documentation
Details
EN face-to-face standard | EN 558 Series 14 |
---|---|
DIN face-to-face standard | DIN 3202 F4 |
Material | Cast iron |
Face to Face (mm) | 107.0 |
Body material | Cast iron |
PS (bar) | 16 |
Connections | Flanged PN10/16 |
TS max (°C) | 150 |
TS min (°C) | -10 |
Warranty period | 2 years |
