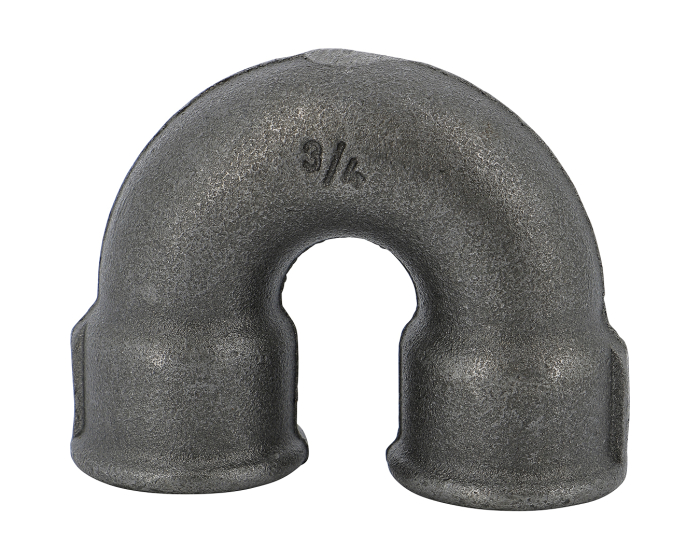

180° return bend female - Black - 60

The Series 60N is a malleable cast iron fitting from the Tupy range, model with double 180° female/female curve, black for cold water, hot water, fire-fighting systems, heating, compressed air, sprinklers.

Choose your configuration

DN inches NPS

See all configurations

3D file

Réf.

CONFSF60N15

(Indicative price) €25.25

Quantity

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Documentation

Certificate of Conformity pdf - 198.7 ko

Fiche technique Raccords fonte malléable BSP pdf - 1.1 mo

Notice de montage pdf - 128.8 ko

Instruction of mounting pdf - 94.5 ko

Technical datasheet malleable cast iron fittings BSP pdf - 1.1 mo

Details

Details
Construction standard	NF EN 10242 - ISO 49
Brand	GF
Thread standard	ISO 7-1 Rp
Type of coating	Black
Material	Malleable iron EN-GJMW-400-5
Application	Industry
Fluid	Cold water
PS (bar)	25
Connections	BSP FF
TS max (°C)	300
TS min (°C)	-20
Warranty period	2 years
Type of fitting	Malleable iron
Fitting shape	Double 180° bend
Dimensions (Fitting)	15

Configurations

Product	Reference	Price	Stock
Produit 180° return bend female - Black - 60 1/2''	Référence SF60N15	P.U HT €25.25	Disponibilité 16 pcs available in stock
Produit 180° return bend female - Black - 60 3/4''	Référence SF60N20	P.U HT €38.00	Disponibilité 28 pcs available in stock
Produit 180° return bend female - Black - 60 1''	Référence SF60N26	P.U HT €48.22	Disponibilité 15 pcs available in stock
Produit 180° return bend female - Black - 60 1''1/4	Référence SF60N33	P.U HT €72.50	Disponibilité Currently not in stock
Produit 180° return bend female - Black - 60 1''1/2	Référence SF60N40	P.U HT €82.50	Disponibilité Currently not in stock
Produit 180° return bend female - Black - 60 2''	Référence SF60N50	P.U HT €137.50	Disponibilité Currently not in stock
