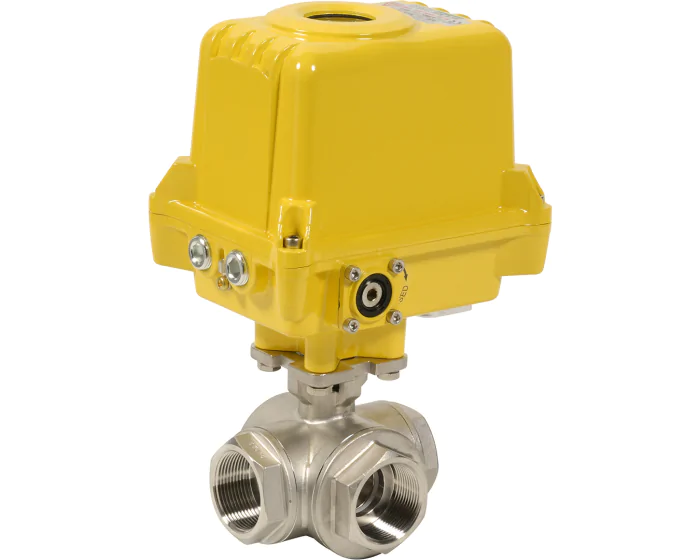

3 way ball valve 780XS-L + SA-X/NA-X electric actuator
The 780L or 781T 3-way ball valve has a stainless steel 1.4408 body and ball and PTFE seats. It is actuated with an ATEX SA05-X electric actuator. PS: 63 bar, TS: -30 / +180°C. G threaded fittings.
Documentation
Details
| Option certificate 3.1 | Yes |
|---|---|
| Maximum delta P (bar) | 10 |
| ATEX atmosphere | IIB |
| Shaft/stem matérial | Stainless steel 316 |
| Manual override | By key |
| Declutchable | No |
| Duty service | S4 duty service - 50% |
| Protection index (IP) | IP 67 |
| Torque limiter | No |
| Recommended location | Outdoor |
| Body material | Stainless steel CF8M (1.4408) |
| ATEX protection mode | EEx d |
| Number of ways | 3 |
| Bore | Reduced |
| Packing gland | PTFE |
| PS (bar) | 63 |
| Power (W) | 6 |
| Anti-condensation heater | Standard |
| Positive safety | No |
| Function | On-off |
| Electric actuator type | SA05-X |
| Electric actuator series | SA-X/NA-X ATEX series |
| Seats | PTFE |
| Operating time (s) | 17.0 |
| Surface temperature | T4 |
| TS max (°C) | 180 |
| TS min (°C) | -30 |
| ATEX zone | 1. 2 |
| Warranty period | 1 year |
| CE | Risk category III |
| Electrical connection | By gland packing ATEX |
| Fire safe | No |
