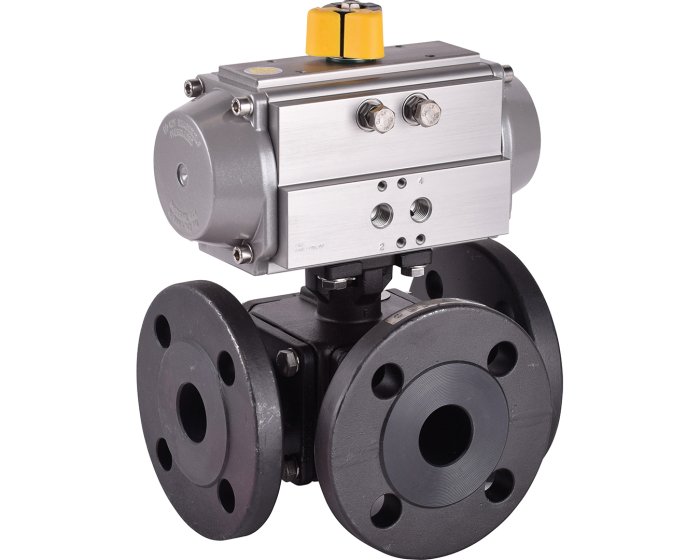

3 way carbon steel ball valve 783-L/784-T + RE/RES pneumatic actuator
The 783-L/784-T series 3-way ball valve has a carbon steel body (1.0619), a stainless steel ball and PTFE seats. It is actuated with an ALPHAIR pneumatic actuator. PS: 16 bar, TS: 150°C.
![main product photo](https://www.syveco.com/media/catalog/product/cache/582ed6748c10bbb99b236b27a124fb97/7/8/783L-784T-RE-RES.jpg)
Documentation
Details
Option certificate 3.1 | Yes |
---|---|
Maximum delta P (bar) | 10 |
Actuator | BR 64 |
Operating angle (°) | 90 |
Shaft/stem matérial | Stainless steel 304 |
Adjustable limit screws | Yes |
ATEX compatible | Yes |
Face to Face (mm) | 185.0 |
Body material | Carbon steel A216 WCB (1.0619) |
ATEX protection mode | EEx c |
Number of ways | 3 |
Bore | Full |
Packing gland | PTFE |
PS (bar) | 16 |
Connections | Flanged PN16 |
Seats | PTFE-Glass |
Ball material | Stainless steel 304 |
Surface temperature | TX |
TS max (°C) | 150 |
TS min (°C) | -20 |
ATEX zone | 1.21.2.22 |
Warranty period | 1 year |
CE | Risk category II |
Range | Industry |
Fire safe | No |
