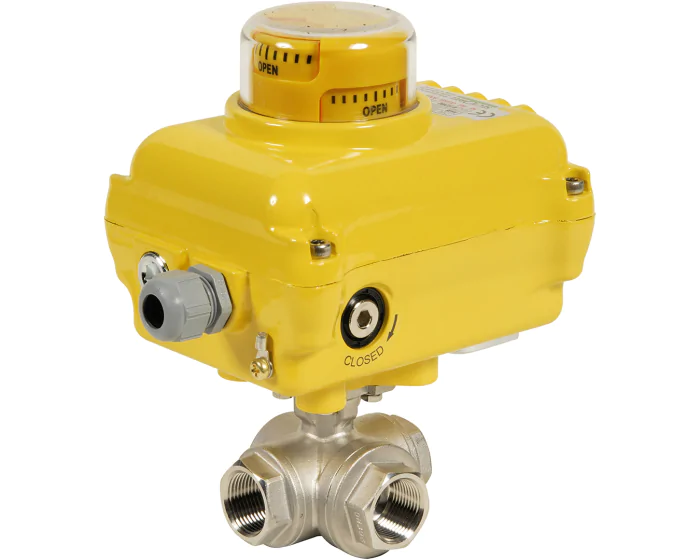

3 way stainless steel ball valve 780L-781TXS + SA05 electric actuator
The 780L or 781T 3-way ball valve has a 1.4408 stainless steel body and ball and PTFE seats. It is actuated with an SA05 electric actuator. PS: 63 bar, TS: -30 / +180°C. G threaded fittings.
![main product photo](https://www.syveco.com/media/catalog/product/cache/582ed6748c10bbb99b236b27a124fb97/7/8/780XS-SA05.jpg)
Documentation
Details
Option certificate 3.1 | Yes |
---|---|
Maximum delta P (bar) | 10 |
Shaft/stem matérial | Stainless steel 316 |
Manual override | By key |
Declutchable | No |
Duty service | S4 duty service - 50% |
Protection index (IP) | IP 67 |
Torque limiter | No |
Recommended location | Outdoor |
Body material | Stainless steel CF8M (1.4408) |
Number of ways | 3 |
Bore | Reduced |
Packing gland | PTFE |
PS (bar) | 63 |
Power (W) | 6 |
Anti-condensation heater | Standard |
Positive safety | No |
Function | On-off |
Electric actuator type | SA 05 |
Electric actuator series | SA/NA series |
Seats | PTFE |
Operating time (s) | 17.0 |
TS max (°C) | 180 |
TS min (°C) | -30 |
Warranty period | 1 year |
CE | Risk category III |
Electrical connection | Per gland packing M20 x 1.5 |
Fire safe | No |
