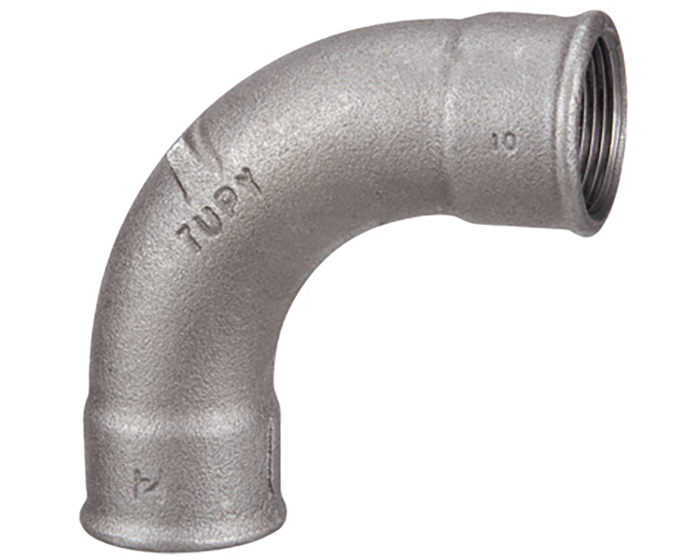

90° long sweep bend female - Black - 2
The Series 2N is a malleable cast iron fitting from the Tupy range, 90° female/female curved model, black for cold water, hot water, fire-fighting systems, heating, compressed air, sprinklers.
Documentation
Details
| Construction standard | NF EN 10242 - ISO 49 |
|---|---|
| Brand | TUPY |
| Thread standard | ISO 7-1 Rp/ISO 7-1 Rp |
| Type of coating | Black |
| Material | Malleable iron EN-GJMB-350-10 |
| Application | Industry |
| Fluid | Cold water |
| PS (bar) | 25 |
| Connections | BSP FF |
| TS max (°C) | 300 |
| TS min (°C) | -20 |
| Warranty period | 2 years |
| Type of fitting | Malleable iron |
| Fitting shape | 90° bend large radius |
| Dimensions (Fitting) | 15 |
