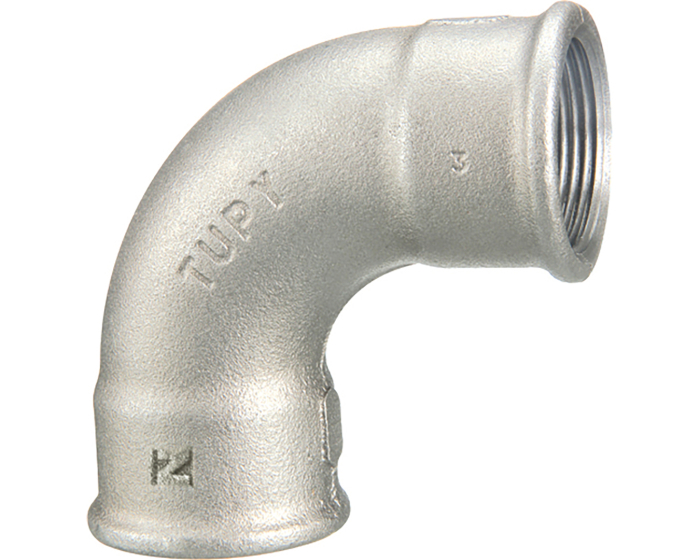

90° long sweep bend female - Galvanised - 2
The Series 2G is a malleable cast iron fitting from the Tupy range, 90° female/female curved model, galvanised for cold water, hot water, fire-fighting systems, heating, compressed air, sprinklers.
Documentation
Certificate of Conformity
pdf - 198.7 ko
Details
Construction standard | NF EN 10242 - ISO 49 |
---|---|
Brand | TUPY |
Thread standard | ISO 7-1 Rp/ISO 7-1 Rp |
Type of coating | Hot-dip galvanised |
Material | Malleable iron EN-GJMB-350-10 |
Application | Industry |
Fluid | Cold water |
PS (bar) | 25 |
Connections | BSP FF |
TS max (°C) | 300 |
TS min (°C) | -20 |
Drinking water compatibility | Yes |
Warranty period | 2 years |
Type of fitting | Malleable iron |
Fitting shape | 90° bend large radius |
Dimensions (Fitting) | 15 |
