90° long sweep bend male - Galvanised - AFY - 3

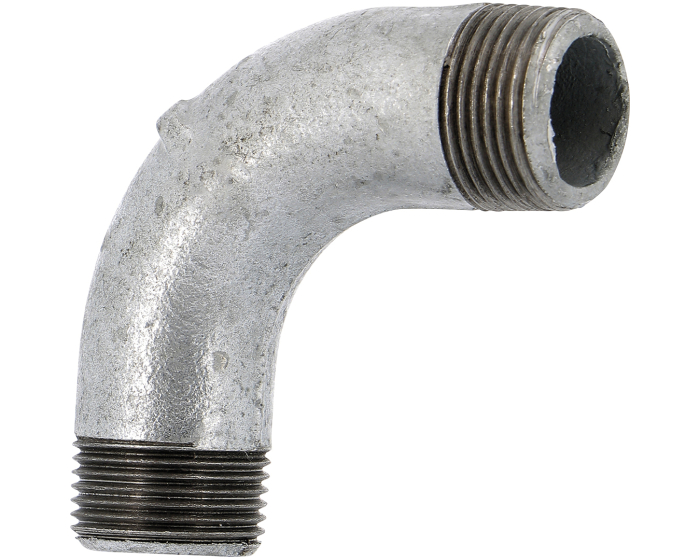

The 3 G series is a malleable cast cast iron fitting from the AFY range, model with 90° wide radius male-male bend, with galvanised coating for drinking water compatibility. For use with cold or hot water.
![main product photo](https://www.syveco.com/media/catalog/product/cache/582ed6748c10bbb99b236b27a124fb97/3/g/3g-raccord-fonte-courbe-mm-grandrayon-90-galva-afy.jpg)
Documentation
Details
Construction standard | NF EN 10242 |
---|---|
Type of coating | Hot-dip galvanised |
Material | Malleable iron EN-GJMB-350-10 |
PS (bar) | 20 |
Connections | BSP MM |
TS max (°C) | 300 |
TS min (°C) | -20 |
Drinking water compatibility | Yes |
Warranty period | 2 years |
Type of fitting | Malleable iron |
Fitting shape | 90° bend large radius |
