Details
| Construction standard | NF EN 10242 - ISO 49 |
|---|---|
| Brand | GF |
| Thread standard | ISO 7-1 Rp |
| Type of coating | Hot-dip galvanised |
| Material | Malleable iron EN-GJMW-400-5 |
| Application | Industry |
| Fluid | Cold water |
| PS (bar) | 25 |
| Connections | BSP FF |
| TS max (°C) | 300 |
| TS min (°C) | -20 |
| Drinking water compatibility | Yes |
| Warranty period | 2 years |
| Type of fitting | Malleable iron |
| Fitting shape | Union elbow with flat bearing |
| Dimensions (Fitting) | 15 |

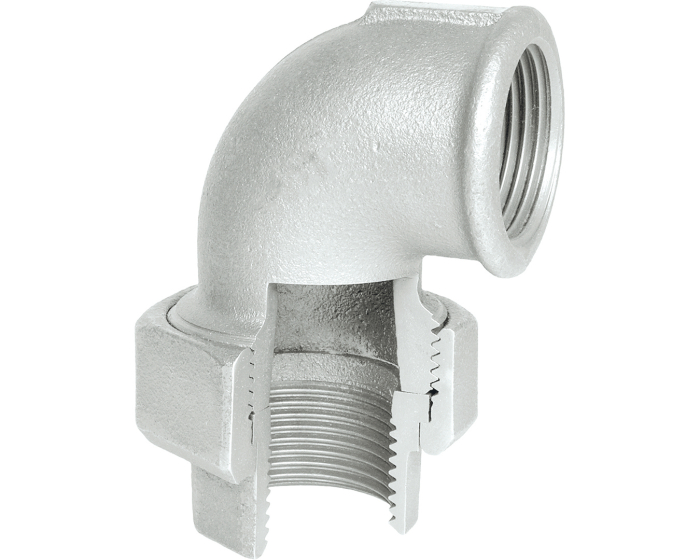

90° union elbow flat bearing female - Galvanised - 95
The Series 95 is a malleable cast iron fitting from the Tupy range, female/female elbow with flat gasket, galvanised for cold water, hot water, fire-fighting systems, heating, compressed air, sprinklers.
