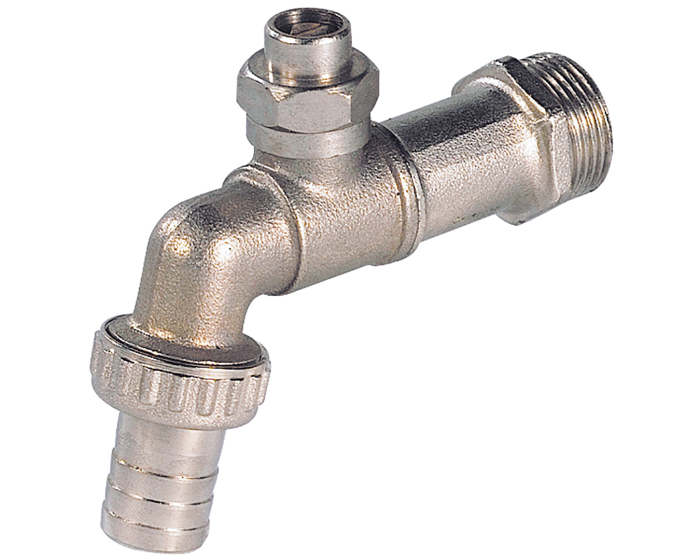

Bibcock valve 680 with tampered head drive
Discover the nickel-plated brass ball valve with concealed inlet head for water distribution networks. Operated by a 6 mm square key to secure the operation.
Documentation
Certificate of Conformity
pdf - 192.8 ko
Fiche technique robinet puisage laiton tête cache entree
pdf - 349.6 ko
Notice montage vanne à sphere laiton
pdf - 318.4 ko
Installation operating manual brass ball valve
pdf - 259.2 ko
Details
DN metric | 15/21 |
---|---|
Brand | AIRAGA |
Thread standard | ISO 228-1 |
Stem sealing material | NBR double O-ring |
Type of coating | Nickel-plated |
Opening device | Handle |
Application | Water supply and distribution network |
Shaft/stem matérial | Brass CW614N |
DN | 15 |
DN (Output) | 3/4'' |
Face to Face (mm) | 101.0 |
Fluid | Cold water |
Body material | Brass CW617N |
Number of ways | 2 |
PS (bar) | 16 |
Connections | BSP MM |
Seats | PTFE |
Ball material | Chrome-plated brass CW617N |
TS max (°C) | 60 |
TS min (°C) | 0 |
Warranty period | 2 years |
Hose nipple diameter (mm) | 19.0 |
Handle material | Brass |
Handle type | Key |
