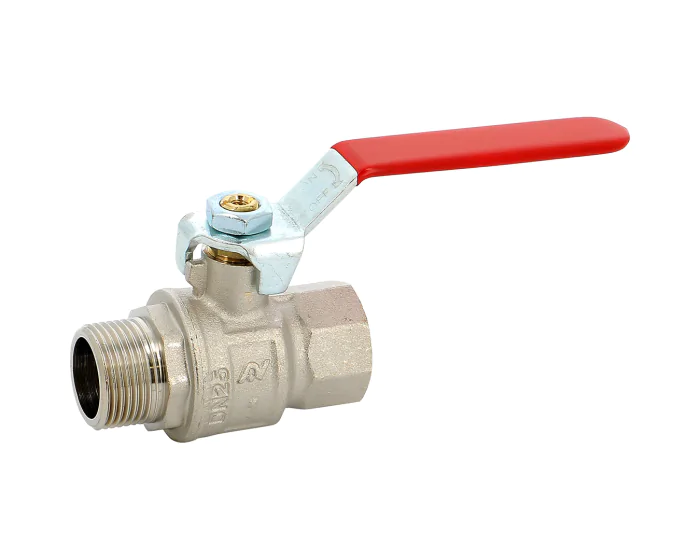

Brass ball valve 527 BSP male/female red lever
The full bore brass ball valve 527 BSP with wide flat bearing for shut-off of water, heating, sprinkling, irrigation, air conditioning and compressed air systems.
Documentation
Certificate of Conformity
pdf - 192.7 ko
Notice montage vanne à sphere laiton
pdf - 318.4 ko
Installation operating manual brass ball valve
pdf - 259.2 ko
Technical datasheet brass ball valve Industry PN40 BSP
pdf - 474.3 ko
Details
DN metric | 15/21 |
---|---|
Brand | AIRAGA |
Thread standard | ISO 228-1 |
Stem sealing material | PTFE Gland packing + EPDM O-ring |
Type of coating | Nickel-plated |
Opening device | Handle |
Application | Industry |
Shaft/stem matérial | Brass CW614N |
DN | 15 |
Face to Face (mm) | 67.5 |
Fluid | Cold water |
Body material | Brass CW617N |
Number of ways | 2 |
Bore | Full |
Bearing | Large flate |
Packing gland | Yes |
PS (bar) | 60 |
Connections | BSP MF |
Seats | PTFE |
Ball material | Chrome-plated brass CW617N |
TS max (°C) | 120 |
TS min (°C) | -10 |
Warranty period | 2 years |
Handle material | Carbon steel |
Handle type | Red lever |
