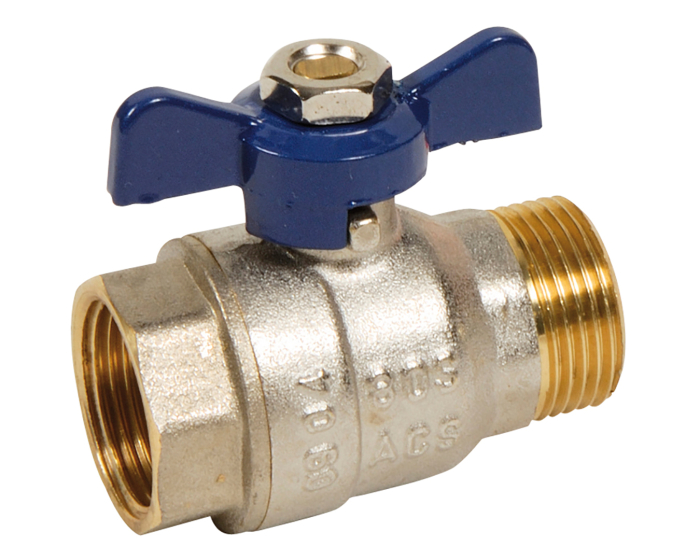

Brass ball valve 533 male/female blue butterfly handle PN30/20
The 533 brass ball valve CW617N, ACS 4MS, for use in heating, drinking water, air conditioning, sprinkling and irrigation. Full bore and wide flat bearing, blue butterfly handle.
Documentation
Certificat ACS Vanne à sphère laiton Bat+ Ref+
pdf - 213.5 ko
Certificat ACS Vannes à Sphère Laiton Bâtiment+ Référence+
pdf - 213.5 ko
Certificate of Conformity
pdf - 194.9 ko
Fiche technique vanne à sphère laiton bâtiment 80S MF BSP
pdf - 632.6 ko
Notice montage vanne à sphere laiton
pdf - 318.4 ko
Installation operating manual brass ball valve
pdf - 259.2 ko
Details
DN metric | 15/21 |
---|---|
Adaptable extension | Yes |
Thread standard | ISO 228-1 |
Stem sealing material | PTFE gland packing |
Type of coating | Brushed |
Opening device | Handle |
Application | Heating / Sanitary / Drinking water / Air conditioning / Irrigation |
Shaft/stem matérial | Brass CW614N |
DN | 15 |
Face to Face (mm) | 52.0 |
Fluid | Hot water / Cold water / Drinking water |
Body material | Brass CW617N |
Number of ways | 2 |
Bore | Full |
Bearing | Large flate |
Packing gland | Yes |
PS (bar) | 30 |
Connections | BSP MF |
Seats | PTFE |
Ball material | Chrome-plated brass CW614N |
TS max (°C) | 120 |
TS min (°C) | -10 |
Warranty period | 2 years |
Handle material | Aluminium |
Handle type | Blue butterfly handle |
