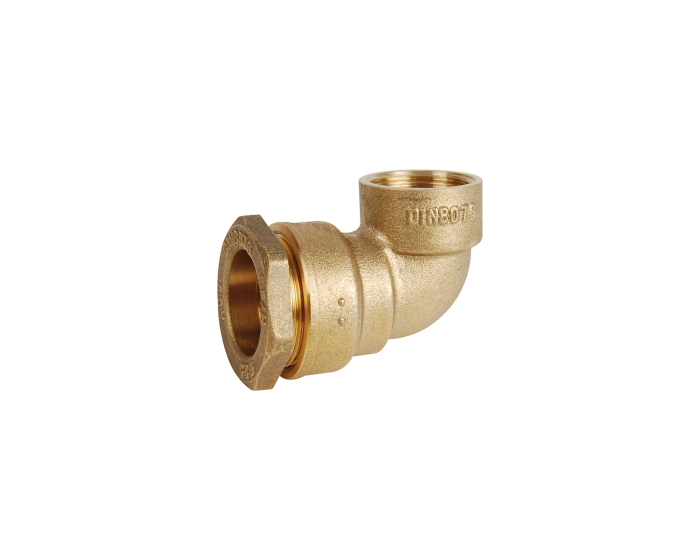

Brass elbow 90° female - For PE pipes
The 818 brass elbow 90° female is well-suited for applications in water supply and distribution networks using polypropylene pipes. Conforming to DIN 8076-1, it can be easily installed without requiring disassembly.
Documentation
Notice montage Raccords laiton à serrage extérieur
pdf - 368.2 ko
Installation Operating Manual brass fittings for PE pipes
pdf - 260.4 ko
Technical datasheet brass fittings for PE pipes
pdf - 320.7 ko
Details
Construction standard | DIN 8076-1 - ISO 3567 |
---|---|
Spring material | polyethylene |
Thread standard | ISO 228-1 |
Material | Brass CW617N |
Type of mounting | On pipe without dismantling the fitting |
Face to Face (mm) | 27.5 |
Gasket | NBR |
PS (bar) | 16 |
TS max (°C) | 40 |
TS min (°C) | 4 |
Warranty period | 2 years |
Type of fitting | DECA |
Fitting shape | Elbow |
PE pipe diameter | 25 |
