Documentation
Details
| Construction standard | DIN 8076-1 - ISO 3549 |
|---|---|
| Spring material | polyethylene |
| Thread standard | ISO 228-1 |
| Material | Brass CW617N |
| Type of mounting | On pipe without dismantling the fitting |
| DN | 25 |
| DN (Output) | 3/4 ''M-1/2 ''F |
| Face to Face (mm) | 89.0 |
| Gasket | NBR |
| PS (bar) | 16 |
| TS max (°C) | 40 |
| TS min (°C) | 4 |
| Warranty period | 2 years |
| Type of fitting | DECA |
| Fitting shape | Tee |
| PE pipe diameter | 25 |

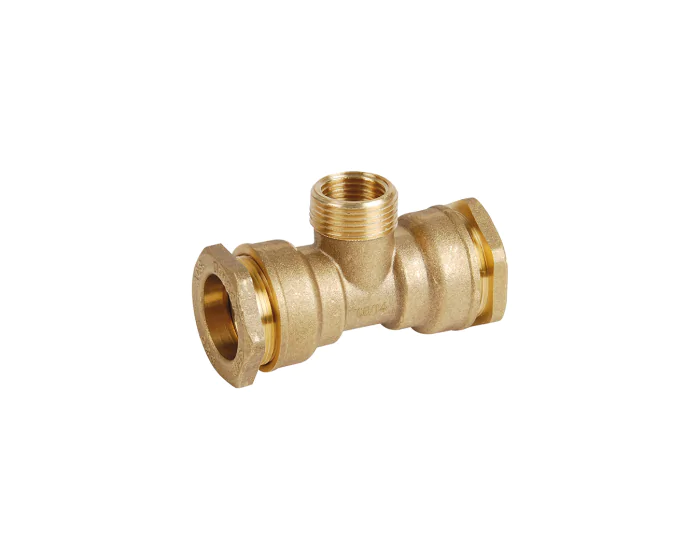

Brass tee female/male - For PE pipes
The 815 brass tee female/male is well-suited for applications in water supply and distribution networks using polypropylene pipes. Conforming to DIN 8076-1, it can be easily installed without requiring disassembly.
