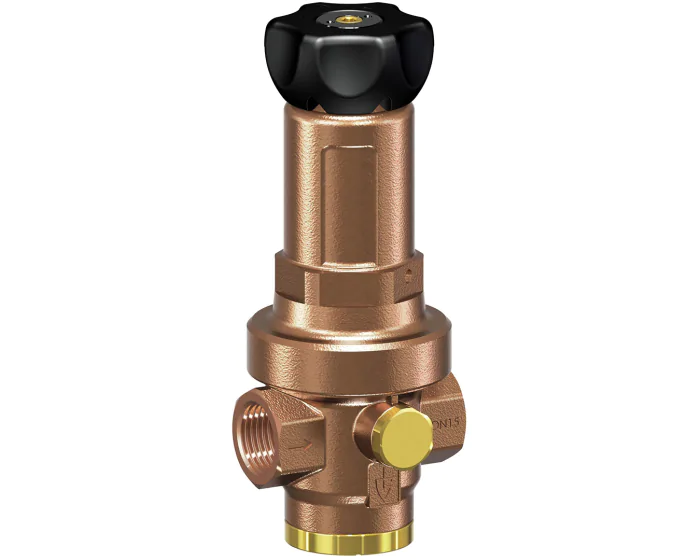

Bronze pressure reducing valve 684 BSP high pressure

The pressure reducing valve type 684 HP made of bronze is designed for the pressure reducing function in high-pressure water or compressed air systems.

Choose your configuration

Downstream pressure range (bar)

See all configurations

3D file

Réf.

CONF246900

(Indicative price) €566.00

Quantity

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Documentation

Fiche technique 684 HP réducteur haute pression bronze pdf - 282.1 ko

Data sheet Bronze pressure reducing valve type 684 HP pdf - 280.7 ko

Details

Details
Option certificate 3.1	No
ATEX compatible	No
Face to Face (mm)	275.0
Sealing	FKM
Gasket	FKM
Kv (m³/h)	1.60
Body material	Bronze CC 499K
PS (bar)	60
Connections	BSP FF
TS max (°C)	120
TS min (°C)	-10
Warranty period	1 year
CE	Excluded (Article 4. §3)

Configurations

Product	Reference	Price	Stock
Produit Bronze pressure reducing valve 684 BSP high pressure 1/4'' 0,5-15 bar	Référence 246900	P.U HT €566.00	Disponibilité 1 pcs available in stock
Produit Bronze pressure reducing valve 684 BSP high pressure 3/8'' 0,5-15 bar	Référence 246901	P.U HT €567.50	Disponibilité 2 pcs available in stock
Produit Bronze pressure reducing valve 684 BSP high pressure 1/2'' 0,5-15 bar	Référence 246902	P.U HT €570.18	Disponibilité 11 pcs available in stock
Produit Bronze pressure reducing valve 684 BSP high pressure 3/4'' 0,5-15 bar	Référence 246903	P.U HT €1,232.00	Disponibilité 2 pcs available in stock
Produit Bronze pressure reducing valve 684 BSP high pressure 1'' 0,5-15 bar	Référence 246904	P.U HT €1,776.22	Disponibilité 3 pcs available in stock
Produit Bronze pressure reducing valve 684 BSP high pressure 1''1/2 0,5-15 bar	Référence 246905	P.U HT €3,379.45	Disponibilité 1 pcs available in stock
Produit Bronze pressure reducing valve 684 BSP high pressure 2'' 0,5-15 bar	Référence 246906	P.U HT €3,598.22	Disponibilité 1 pcs available in stock
Produit Bronze pressure reducing valve 684 BSP high pressure 1/4'' 5-30 bar	Référence 246920	P.U HT €1,225.00	Disponibilité Currently not in stock
Produit Bronze pressure reducing valve 684 BSP high pressure 3/8'' 5-30 bar	Référence 246921	P.U HT €1,225.00	Disponibilité Currently not in stock
Produit Bronze pressure reducing valve 684 BSP high pressure 1/2'' 5-30 bar	Référence 246922	P.U HT €1,299.82	Disponibilité Currently not in stock
Produit Bronze pressure reducing valve 684 BSP high pressure 3/4'' 5-30 bar	Référence 246923	P.U HT €1,438.55	Disponibilité Currently not in stock
Produit Bronze pressure reducing valve 684 BSP high pressure 1'' 5-30 bar	Référence 246924	P.U HT €2,166.72	Disponibilité Currently not in stock
Produit Bronze pressure reducing valve 684 BSP high pressure 1''1/2 5-30 bar	Référence 246925	P.U HT €3,624.50	Disponibilité Currently not in stock
Produit Bronze pressure reducing valve 684 BSP high pressure 2'' 5-30 bar	Référence 246926	P.U HT €3,838.40	Disponibilité Currently not in stock
Produit Bronze pressure reducing valve 684 BSP high pressure 1/4'' 10-50 bar	Référence 246940	P.U HT €1,225.00	Disponibilité Currently not in stock
Produit Bronze pressure reducing valve 684 BSP high pressure 3/8'' 10-50 bar	Référence 246941	P.U HT €1,225.00	Disponibilité Currently not in stock
Produit Bronze pressure reducing valve 684 BSP high pressure 1/2'' 10-50 bar	Référence 246942	P.U HT €1,299.82	Disponibilité Currently not in stock
Produit Bronze pressure reducing valve 684 BSP high pressure 3/4'' 10-50 bar	Référence 246943	P.U HT €1,438.55	Disponibilité Currently not in stock
Produit Bronze pressure reducing valve 684 BSP high pressure 1'' 10-50 bar	Référence 246944	P.U HT €2,166.72	Disponibilité Currently not in stock
Produit Bronze pressure reducing valve 684 BSP high pressure 1''1/2 10-50 bar	Référence 246945	P.U HT €3,624.50	Disponibilité Currently not in stock
Produit Bronze pressure reducing valve 684 BSP high pressure 2'' 10-50 bar	Référence 246946	P.U HT €3,838.40	Disponibilité Currently not in stock
