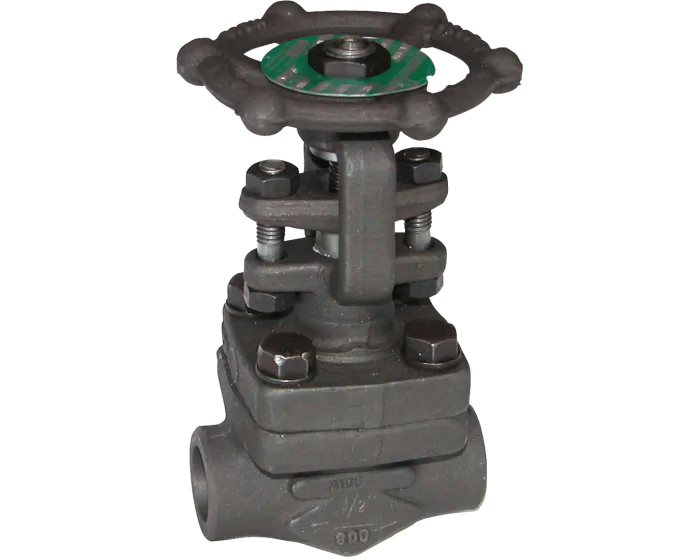

Carbon steel A105N globe valve 402 TRIM 8 600 lbs SW
The 402 series globe valve, A105N forged steel bellows seal, SW weld, standard bore, Class 600, TRIM 8, ATEX compliant for oil, chemical, petrochemical and steam applications.
Documentation
Certificate of Conformity
pdf - 195.1 ko
Notice montage robinet vanne à opercule forgée
pdf - 2.7 mo
Installation operating manual forged valve
pdf - 2.7 mo
Details
DN inches NPS | 1/2'' |
---|---|
Option certificate 3.1 | Yes |
Bonnet material | Carbon steel ASTM A105N |
Construction standard | ISO 15761 - API 602 V8 |
CE risk category | III Module H |
TRIM | TRIM 8 |
Brand | OMB |
Tightness test standard | API 598 |
Bonnet | Bolted |
Stem sealing material | Graphite |
Steam | Yes |
Opening device | Handwheel |
Application | Industry |
ATEX atmosphere | Group II Cat. 2G/2D |
Shaft/stem matérial | Stainless steel AISI 410 |
ATEX compatible | Yes |
Face to Face (mm) | 80.0 |
Sealing | Metal / Metal |
Fluid | Steam |
Kv (m³/h) | 1.3 |
Body material | Carbon steel ASTM A105 N |
Bore | Standard |
Packing gland | Yes |
PS (bar) | 100 |
Connections | Welding SW |
Seats | Stellite Gr.6 |
TS max (°C) | 425 |
TS min (°C) | -29 |
ATEX zone | 1 & 21. 2 & 22 |
Warranty period | 2 years |
Bellow | Stainless steel ASTM A479 type 321 |
Type of stem | Rising |
CE | Yes |
Main product colour | Black |
Plug material | Stainless steel ASTM A276 AISI 410 |
Handle material | Carbon steel |
