Documentation
Certificate of Conformity
pdf - 194.9 ko
Notice montage filtre à tamis en Y forgé
pdf - 187.6 ko
Installation operating manual forged strainer
pdf - 223.2 ko
Spare parts
Details
DN inches NPS | 1/2'' |
---|---|
Option certificate 3.1 | Yes |
Bonnet material | Carbon steel ASTM A105N |
Construction standard | ASME B16.34 |
CE risk category | III Module H |
Tightness test standard | API 598 |
Bonnet | Bolted |
Steam | Yes |
Application | Industry |
ATEX atmosphere | Group II Cat. 2G/2D |
ATEX compatible | Yes |
Face to Face (mm) | 90.0 |
Fluid | Oxygen / Argon / Nitrogen |
Body material | Carbon steel ASTM A105 N |
Bore | Standard |
PS (bar) | 136 |
Connections | Welding SW |
Screen (mesh) | 8/10° |
TS max (°C) | 425 |
TS min (°C) | -29 |
ATEX zone | 1 & 21. 2 & 22 |
Warranty period | 2 years |
CE | Yes |
Main product colour | Black |
Filter design | Y |

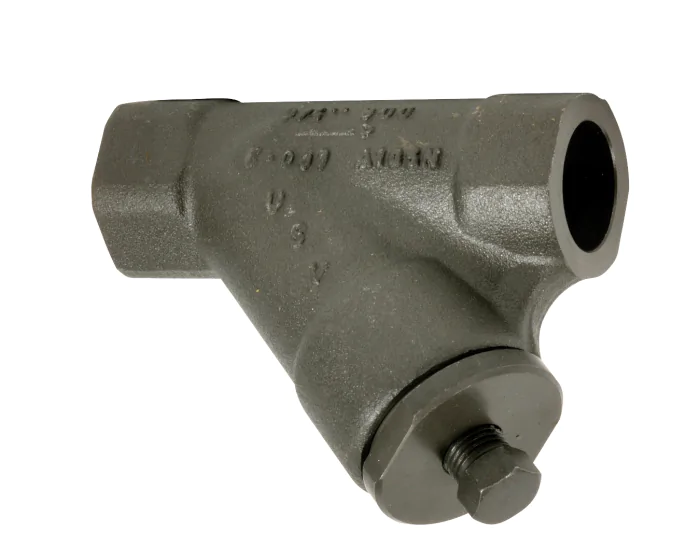

Carbon steel A105N Y-strainer 232 800 lbs SW
The Socket Welding forged steel A105N strainer, series 232, with removable stainless steel screen, Class 800, for oil, steam and high pressure industries.
