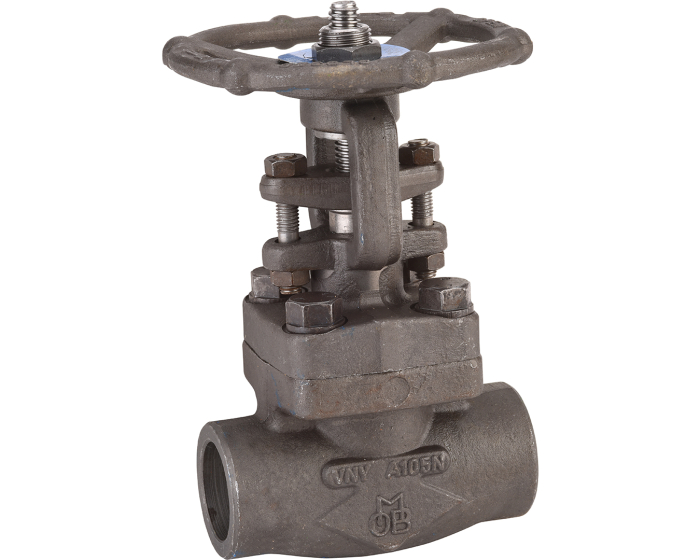

Carbon steel A150N gate valve 111 TRIM 16 800 lbs SW
The 111 series gate valve in forged steel, Class 800 TRIM 16, SW weldable, standard bore, with non-rotating rising stem for the oil, steam and high pressure industries.
![main product photo](https://www.syveco.com/media/catalog/product/cache/582ed6748c10bbb99b236b27a124fb97/1/1/111-vanne-opercule-acier-800lbs-trim16-sw.jpg)
Documentation
Details
DN inches NPS | 1/2'' |
---|---|
Option certificate 3.1 | Yes |
Bonnet material | Carbon steel ASTM A105N |
Construction standard | ISO 15761 - API 602 V8 |
CE risk category | III Module H |
NACE MR0175 | Yes |
TRIM | TRIM 16 |
Brand | OMB |
Tightness test standard | API 598 |
Bonnet | Bolted |
Steam | Yes |
Opening device | Handwheel |
Application | Industry |
ATEX atmosphere | Group II Cat. 2G/2D |
Shaft/stem matérial | Stainless steel AISI 316 |
ATEX compatible | Yes |
Face to Face (mm) | 80.0 |
Sealing | Metal / Metal |
Fluid | Oxygen / Argon / Nitrogen |
Kv (m³/h) | 4.8 |
Body material | Carbon steel ASTM A105 N |
Gate material | Stainless steel AISI 316 + Stellite GR.6 |
Bore | Standard |
Packing gland | Yes |
PS (bar) | 136 |
Connections | Welding SW |
Seats | Stainless steel ASTM A479 316 + Stellite Gr |
TS max (°C) | 425 |
TS min (°C) | -29 |
ATEX zone | 1 & 21. 2 & 22 |
Warranty period | 2 years |
Type of stem | Rising |
CE | Yes |
Main product colour | Black |
Handle material | Carbon steel |
