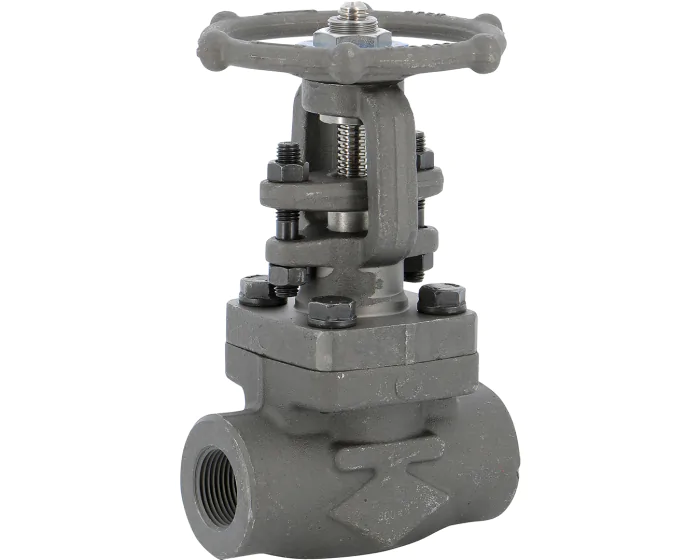

Carbon steel A350LF2 gate valve 120 TRIM 12 1500 lbs NPT
The 120 series gate valve, in forged steel A350LF2, F/F NPT, Class 1500, standard bore, TRIM12 for oil, steam and high pressure industries.
Documentation
Details
| Option certificate 3.1 | Yes |
|---|---|
| Bonnet material | Carbon steel ASTM A350 LF2 |
| Construction standard | ISO 15761 - API 602 V8 |
| CE risk category | III Module H |
| TRIM | TRIM 12 |
| Brand | OMB |
| Tightness test standard | API 598 |
| Bonnet | Bolted |
| Stem sealing material | Stainless steel AISI316 + spiral graphite |
| Steam | Yes |
| Opening device | Handwheel |
| Application | Industry |
| ATEX atmosphere | Group II Cat. 2G/2D |
| Shaft/stem matérial | Stainless steel ASTM A479 type 316L |
| ATEX compatible | Yes |
| Diameter of passage | 9.60 |
| DN | 15 |
| Face to Face (mm) | 90.0 |
| Sealing | Metal / Metal |
| Fluid | Oxygen / Argon / Nitrogen |
| Kv (m³/h) | 4.8 |
| Body material | Carbon steel ASTM A350 LF2 |
| Gate material | Stainless steel ASTM A182 316/316L |
| Bore | Standard |
| Packing gland | Yes |
| PS (bar) | 255 |
| Connections | NPT FF |
| Seats | Stainless steel ASTM A479 316 + Stellite Gr |
| TS max (°C) | 425 |
| TS min (°C) | -46 |
| ATEX zone | 1 & 21. 2 & 22 |
| Warranty period | 2 years |
| Type of stem | Rising |
| CE | Yes |
| Main product colour | Black |
| Handle material | Carbon steel |
