Details
Details
Option certificate 3.1 Yes
Shaft/stem matérial Stainless steel CF8M
Switch type dry SPDT
DN 15
Face to Face (mm) 115.0
3D indicator Yes
Protection index (IP) IP 67
Body material Carbon steel A216 WCB (1.0619)
Number of ways 2
PS (bar) 40
Connections Flanged PN16
Seats TFM 1600
TS max (°C) 200
TS min (°C) -20
Ball valve design 2-piece body
Warranty period 1 year
Electrical connection Per gland packing M20 x 1.5

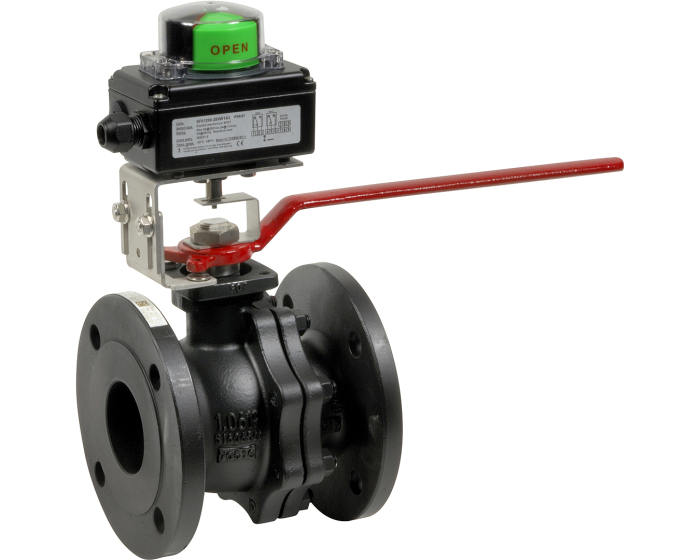

Carbon steel ball valve 752 2-piece body RF PN16 + limit switch box

Steel body 1.0619, stainless steel ball, TFM1600 seats, full bore. PS : 16 bar- TS : -20/+200°C. Fire safe. Flanged attachments PN16 RF. Findecourse SF012 housing, 2 SPDT dry contacts.
Choose your configuration
See all configurations
Réf.
CONF2742820462012
(Indicative price) €1,035.70

Configurations

Product Reference Price Stock
Produit
Carbon steel ball valve 752 body RF PN16 + limit switch box DN15
Produit
Carbon steel ball valve 752 body RF PN16 + limit switch box DN20
Produit
Carbon steel ball valve 752 body RF PN16 + limit switch box DN25
Produit
Carbon steel ball valve 752 body RF PN16 + limit switch box DN32
Produit
Carbon steel ball valve 752 body RF PN16 + limit switch box DN40
Produit
Carbon steel ball valve 752 body RF PN16 + limit switch box DN50
Produit
Carbon steel ball valve 752 body RF PN16 + limit switch box DN65
Produit
Carbon steel ball valve 752 body RF PN16 + limit switch box DN80
Produit
Carbon steel ball valve 752 body RF PN16 + limit switch box DN100
Produit
Carbon steel ball valve 752 body RF PN16 + limit switch box DN125
Produit
Carbon steel ball valve 752 body RF PN16 + limit switch box DN150

11 Item(s)
