Documentation
Certificate of Conformity
pdf - 196.8 ko
Notice montage robinet à tournant sphérique à brides
pdf - 131.2 ko
Installation operating manual split body ball valve flanged
pdf - 166.3 ko
Spare parts
Details
DN inches NPS | 2'' |
---|---|
Option certificate 3.1 | Yes |
Construction standard | EN 12516-1 |
CE risk category | III Module H |
Fire safe standard | API 607 V6 |
EN face-to-face standard | EN 558 Series 27 |
DIN face-to-face standard | DIN 3202 F4. DIN 3357-2 ff |
Face to face standard | error to be processed |
Tightness test standard | API 598 |
Stem sealing material | Graphite |
Antistatic device | Yes |
Steam | Yes |
Degassing hole | Yes |
Opening device | Handle |
Application | Industry |
ATEX atmosphere | Group II Cat. 2G/2D |
Shaft/stem matérial | Stainless steel ASTM A479 type 316 |
Lockable | Yes |
Square, star (mm) | Square 14 mm |
ATEX compatible | Yes |
Torque (Nm) | 40.0 |
Face to Face (mm) | 150.0 |
Fluid | Hydrocarbons. gas |
Kv (m³/h) | 415.0 |
Body material | Carbon steel A216 WCB (1.0619) |
Number of ways | 2 |
Bore | Full |
ISO pad 5211 | Yes |
Packing gland | Yes |
PS (bar) | 40 |
Connections | Flanged PN10/40 |
Seats | PTFE-Glass |
Ball material | Stainless steel ASTM A351 CF8M |
TS max (°C) | 200 |
TS min (°C) | -20 |
Ball valve design | Split body |
ATEX zone | 1 & 21. 2 & 22 |
Warranty period | 2 years |
CE | Yes |
Main product colour | Black |
Handle material | Stainless steel AISI 304 |
Handle type | Red lever |
Fire safe | Yes |

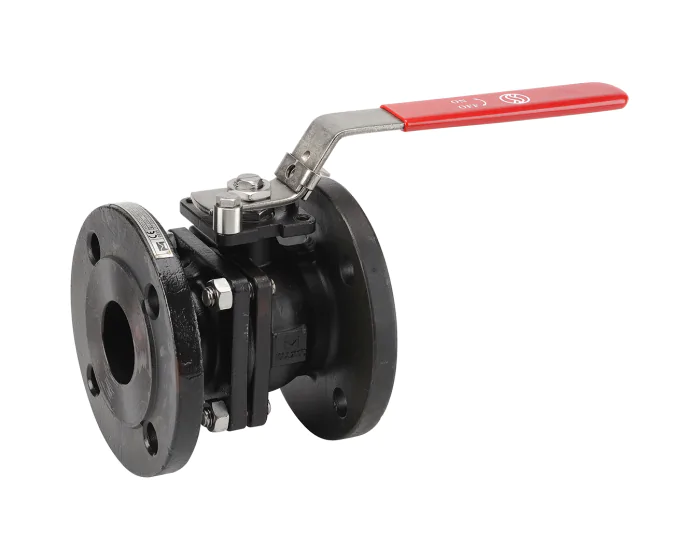

Carbon steel ball valve 762 2-piece body RF PN16
Discover the Sferaco 762 series ball valve, 2-piece body model of the performance range in PN16/40 flanged steel, full bore, with double antistatic system, PTFE seat for chemicals, petrochemicals, heating, etc.
