| Option certificate 3.1 | Yes |
|---|---|
| Maximum delta P (bar) | 10 |
| Actuator | BR 76 |
| Operating angle (°) | 90 |
| Shaft/stem matérial | Stainless steel 630 (17-4 PH) |
| Adjustable limit screws | Yes |
| ATEX compatible | Yes |
| Face to Face (mm) | 43.0 |
| Body material | Carbon steel A216 WCB (1.0619) |
| ATEX protection mode | EEx c |
| Number of ways | 2 |
| Disc material | Stainless steel CF8M |
| PS (bar) | 20 |
| Connections | Between flanges #150 PN20 |
| Seats | PTFE-Graphite |
| Surface temperature | TX |
| TS max (°C) | 210 |
| TS min (°C) | -29 |
| Butterfly valve design | Double offset |
| Wafer/lug | Lug |
| ATEX zone | 1.21.2.22 |
| Warranty period | 1 year |
| CE | Risk category I |
| Range | High performance butterfly valves |
| Fire safe | Yes |

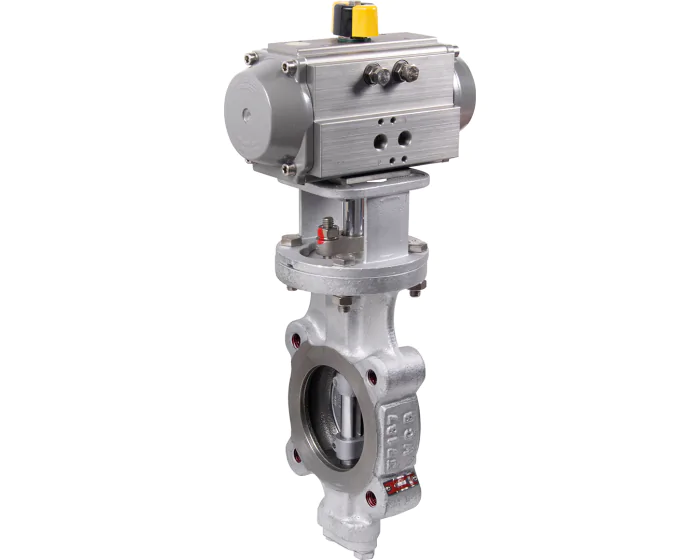

Carbon steel butterfly valve 1117 + RE/RES pneumatic actuator
The 1117 lug type double offset butterfly valve has a carbon steel body, a CF8M (1.4408) stainless steel disc and a PTFE/graphite seat. ALPHAIR pneumatic actuation. PS: 20 bar, TS: 210°C. Mounting between flanges ANSI 150.
