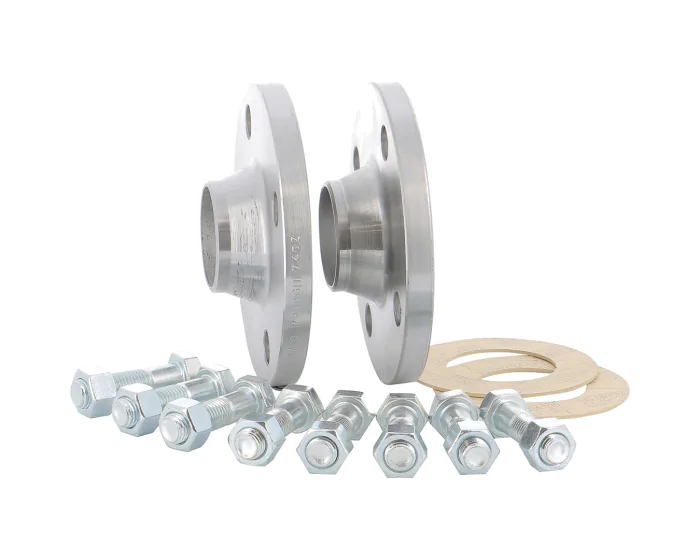

Carbon steel flange set for 2 way PN10 valve - 2130 DN200
Discover the 2131 Sferaco flanges in P245GH steel, bolts and gasket for PN10 2-way valves for fluids, gas and drinking water
Réf.
2131200
(Indicative price)
€445.00
Currently not in stock
Documentation
Details
| DN inches NPS | 8'' |
|---|---|
| Construction standard | EN 1092-1 |
| Flange type | Equipment Kit Flanges |
| Type of collar | error to be processed |
| Number of flange holes | 8 |
| Hole diameter L (mm) | 22.0 |
| Drilling circle diameter flange ØK (mm) | 295.0 |
| Bolt diameter | M20 |
| Bolt length (mm) | 70.0 |
| Flange facing type | Type B - Raised face |
| Gasket bearing diameter e (mm) | 268.0 |
| Flange thickness b (mm) | 24.0 |
| Weld-neck thickness S (mm) | 6.3 |
| Flange type | Equipment for 2-way valve PN16 |
| Material | Forged steel P250GH |
| Application | Industry |
| Tube diameter (mm) | 219.10 |
| DN | 200 |
| Fluid | Oxygen / Argon / Nitrogen |
| PS (bar) | 10 |
| Connections | Flanged PN10 |
| TS max (°C) | 150 |
| TS min (°C) | -10 |
| Warranty period | 2 years |
| Outside diameter (mm) | 340 |
