Documentation
Certificate of Conformity
pdf - 191.8 ko
Fiche technique bride acier à collerette 11B1 PN6
pdf - 374.1 ko
Details
DN inches NPS | 2'' |
---|---|
Option certificate 3.1 | Yes |
Construction standard | EN 1092-1 |
Flange type | Weld-neck flange |
Number of flange holes | 4 |
Hole diameter L (mm) | 14.0 |
Drilling circle diameter flange ØK (mm) | 110.0 |
Bolt diameter | M16 |
Flange facing type | Type B - Raised face |
Gasket bearing diameter e (mm) | 90.0 |
Flange thickness b (mm) | 14.0 |
Weld-neck thickness S (mm) | 2.9 |
Flange type | Type 11 - weld-neck flange |
Material | Forged steel P245GH |
Application | Industry |
Fluid | Oxygen / Argon / Nitrogen |
PS (bar) | 6 |
Connections | Flanged PN6 |
TS max (°C) | 450 |
TS min (°C) | -10 |
Warranty period | 3 years |
Outside diameter (mm) | 140 |

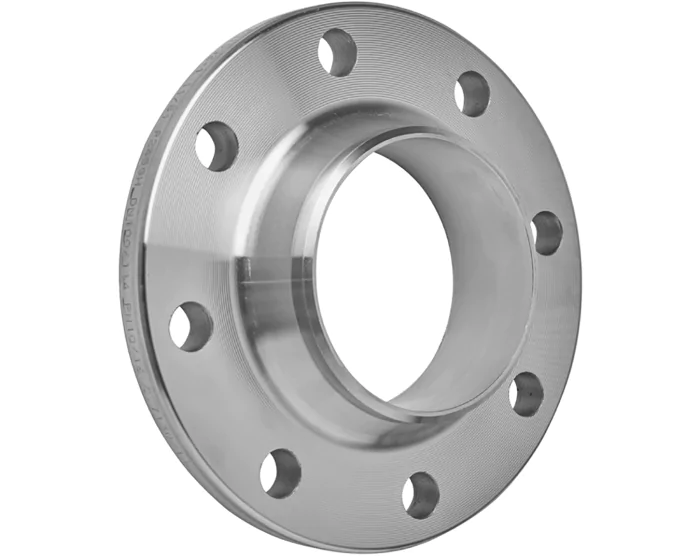

Carbon steel weld-neck flange - Type 11/B1 - RF PN6 - 2151
Find the forged steel flange Series 2151 from the Sferaco Excellence range, type 11/B1, welding BW, PN6, dimensions according to EN 1092-1 for transporting fluids or gases and compatible for drinking water.
