Documentation
Details
| Option certificate 3.1 | No |
|---|---|
| Maximum delta P (bar) | 10 |
| Actuator | ADA 40 |
| Operating angle (°) | 90 |
| Shaft/stem matérial | Stainless steel 304 |
| Adjustable limit screws | Yes |
| ATEX compatible | No |
| Face to Face (mm) | 140.0 |
| Body material | Cast iron |
| Number of ways | 2 |
| Bore | Full |
| Packing gland | FKM |
| PS (bar) | 16 |
| Connections | Flanged PN10/16 |
| Seats | PTFE |
| Ball material | Stainless steel 304 |
| TS max (°C) | 200 |
| TS min (°C) | -10 |
| Ball valve design | 2-piece body |
| Warranty period | 1 year |
| CE | Risk category I |
| Range | HVAC |
| Fire safe | No |

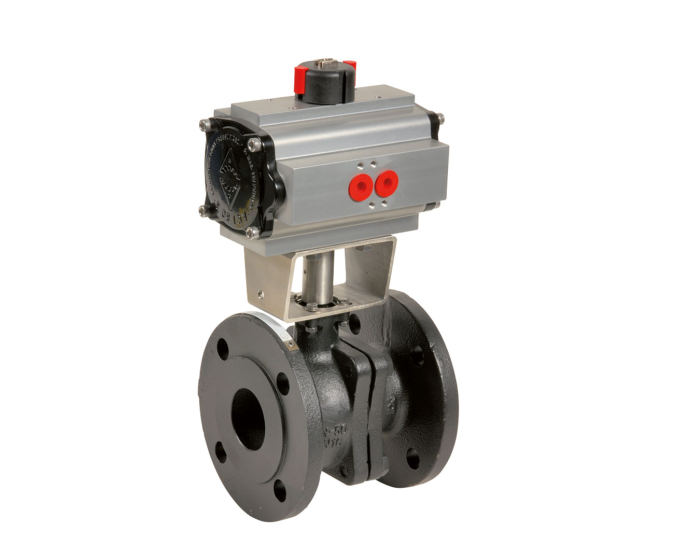

Cast iron ball valve 507 + ADA/ASR pneumatic actuator
The 507 series cast iron ball valve has an EN-GJL-250 body and a CF8M ball. It is actuated with either a spring return or double acting ACTREG pneumatic actuator, up to DN200.
