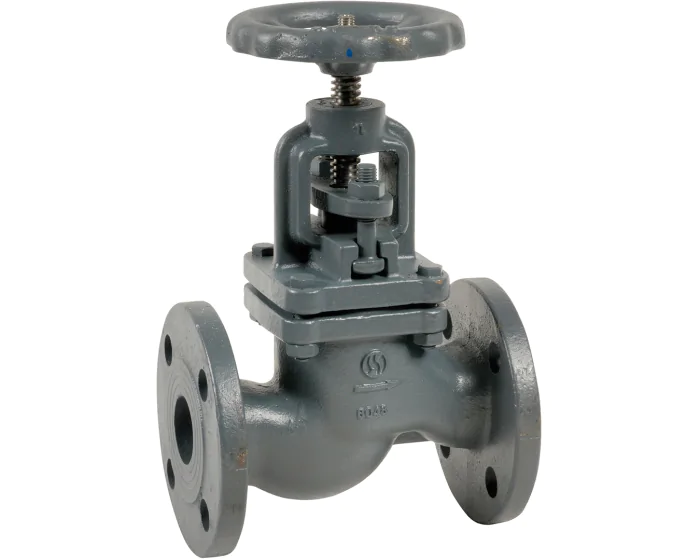

Cast iron globe valve 470 RF PN16 heating
The series 470 globe valve is made of cast iron GJL-250, flanges RF PN16, EN 558 series 1 face to face, stainless steel stem and seat, bolted bonnet and packing gland and rising stem. For water supply, sewerage and heating networks.
Documentation
Certificate of Conformity
pdf - 196 ko
Fiche technique robinet soupape fonte brides PN16
pdf - 446.8 ko
Notice montage robinet soupape à brides
pdf - 126.9 ko
Installation operating manual globe valve
pdf - 160.4 ko
Technical datasheet cast iron globe valve flanged PN16
pdf - 348.4 ko
Details
DN inches NPS | 2'' |
---|---|
Option certificate 3.1 | Yes |
DN metric | 50/60 |
Bonnet material | Cast iron EN GJL-250 |
Type of seat | parallel |
CE risk category | III Module H |
Paint coating thickness (µm) | 90 |
EN face-to-face standard | EN 558 Series 1 |
DIN face-to-face standard | DIN 3202-1 F1 |
Face to face standard | EN 558 series 1 |
Flange type | RF |
Tightness test standard | EN 12266-1. Rate B |
Opening device | Handwheel |
Shaft/stem matérial | Stainless steel AISI 420 |
Opening device/signal | Manual |
Face to Face (mm) | 230.0 |
Sealing | Metal / Metal |
Fluid | Hot / Cold water |
Kv (m³/h) | 41 |
Body material | Cast iron |
PS (bar) | 16 |
Connections | Flanged PN10/16 |
RAL (Paint) | 7011 |
Seats | Stainless steel AISI 420 |
TS max (°C) | 120 |
TS min (°C) | -10 |
Warranty period | 2 years |
Type of stem | Rotating |
CE | Yes |
Plug material | Cast iron + Stainless steel AISI 420 |
