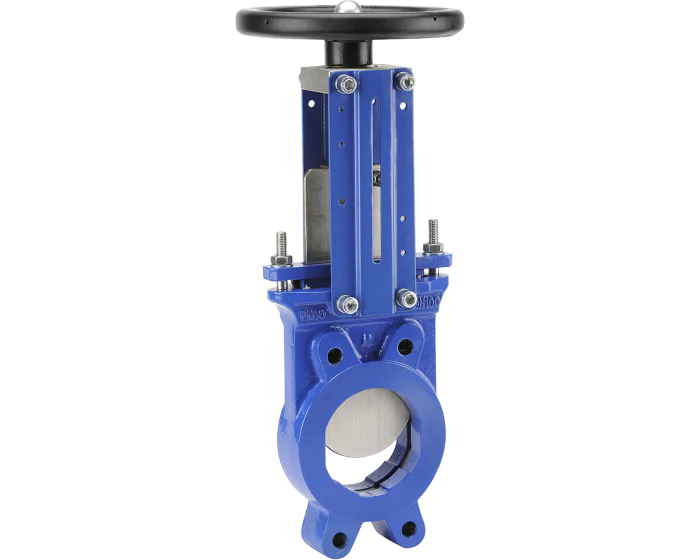

Cast iron knife gate valve 177 F304 gate/EPDM seat

The 177 series bidirectional knife gate valve is made of cast iron with EPDM seat, non rising stem and handwheel, lug type, PN10 flange connection. It is suitable for waste water, paper pulp, chemical, food industry, powder.

Choose your configuration

Number of sensors

See all configurations

3D file

Réf.

CONF177050

(Indicative price) €361.60

Quantity

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Documentation

Certificate of Conformity pdf - 212.9 ko

Fiche technique vanne guillotine bidirectionnelle fonte inox EPDM S-Gate PN10 pdf - 489.3 ko

Notice montage vanne guillotine bidirectionnelle pdf - 796.7 ko

Installation operating manual knife gate valve bidirectional pdf - 925.9 ko

Technical datasheet knife gate valve bidirectional cast iron EPDM PN10 S-Gate pdf - 341 ko

Details

Details
Option certificate 3.1	Yes
Type of paint	Epoxy/polyester
Paint coating thickness (µm)	150.00
Tightness test standard	ISO 5208. Rate A
Opening device	Handwheel
Application	Water supply and distribution network
Shaft/stem matérial	Stainless steel AISI 304
Diameter of passage	50.00
Face to Face (mm)	40.0
Fluid	Abrasive fluids / Dirty water / Sludge
Body material	Cast iron
Packing gland	Yes
PS (bar)	10
Connections	Between flanges PN10/16
RAL (Paint)	5005
Seats	EPDM
TS max (°C)	110
TS min (°C)	-15
Warranty period	2 years
Type of stem	Non-rising
Main product colour	Blue

Configurations

Product	Reference	Price	Stock
Produit Cast iron knife gate valve 177 F304 gate/EPDM seat with wheel DN50	Référence 177050	P.U HT €361.60	Disponibilité 35 pcs available in stock
Produit Cast iron knife gate valve 177 DN50 + limit switch	Référence 177051	P.U HT €575.00	Disponibilité 35 pcs available in stock
Produit Cast iron knife gate valve 177 F304 gate/EPDM seat with wheel DN65	Référence 177065	P.U HT €389.40	Disponibilité 39 pcs available in stock
Produit Cast iron knife gate valve 177 DN65 + limit switch	Référence 177066	P.U HT €600.00	Disponibilité 39 pcs available in stock
Produit Cast iron knife gate valve 177 F304 gate/EPDM seat with wheel DN80	Référence 177080	P.U HT €440.40	Disponibilité 46 pcs available in stock
Produit Cast iron knife gate valve 177 DN80 + limit switch	Référence 177081	P.U HT €650.00	Disponibilité 44 pcs available in stock
Produit Cast iron knife gate valve 177 F304 gate/EPDM seat with wheel DN100	Référence 177100	P.U HT €456.18	Disponibilité 186 pcs available in stock
Produit Cast iron knife gate valve 177 DN100 + limit switch	Référence 177101	P.U HT €667.50	Disponibilité 44 pcs available in stock
Produit Cast iron knife gate valve 177 F304 gate/EPDM seat with wheel DN125	Référence 177125	P.U HT €546.30	Disponibilité 69 pcs available in stock
Produit Cast iron knife gate valve 177 DN125 + limit switch	Référence 177126	P.U HT €820.00	Disponibilité 44 pcs available in stock
Produit Cast iron knife gate valve 177 F304 gate/EPDM seat with wheel DN150	Référence 177150	P.U HT €624.55	Disponibilité 92 pcs available in stock
Produit Cast iron knife gate valve 177 DN150 + limit switch	Référence 177151	P.U HT €850.00	Disponibilité 44 pcs available in stock
Produit Cast iron knife gate valve 177 F304 gate/EPDM seat with wheel DN200	Référence 177200	P.U HT €1,066.30	Disponibilité 64 pcs available in stock
Produit Cast iron knife gate valve 177 DN200 + limit switch	Référence 177201	P.U HT €1,282.50	Disponibilité 40 pcs available in stock
Produit Cast iron knife gate valve 177 F304 gate/EPDM seat with wheel DN250	Référence 177250	P.U HT €1,407.70	Disponibilité Currently not in stock
Produit Cast iron knife gate valve 177 DN250 + limit switch	Référence 177251	P.U HT €1,574.25	Disponibilité Currently not in stock
Produit Cast iron knife gate valve 177 F304 gate/EPDM seat with wheel DN300	Référence 177300	P.U HT €1,863.55	Disponibilité 26 pcs available in stock
Produit Cast iron knife gate valve 177 DN300 + limit switch	Référence 177301	P.U HT €2,030.42	Disponibilité 26 pcs available in stock
Produit Cast iron knife gate valve 177 F304 gate/EPDM seat with wheel DN350	Référence 177350	P.U HT €3,060.00	Disponibilité 3 pcs available in stock
Produit Cast iron knife gate valve 177 F304 gate/EPDM seat with wheel DN400	Référence 177400	P.U HT €4,162.50	Disponibilité 3 pcs available in stock
Produit Cast iron knife gate valve 177 F304 gate/EPDM seat with wheel DN500	Référence 177500	P.U HT €4,144.80	Disponibilité Currently not in stock
