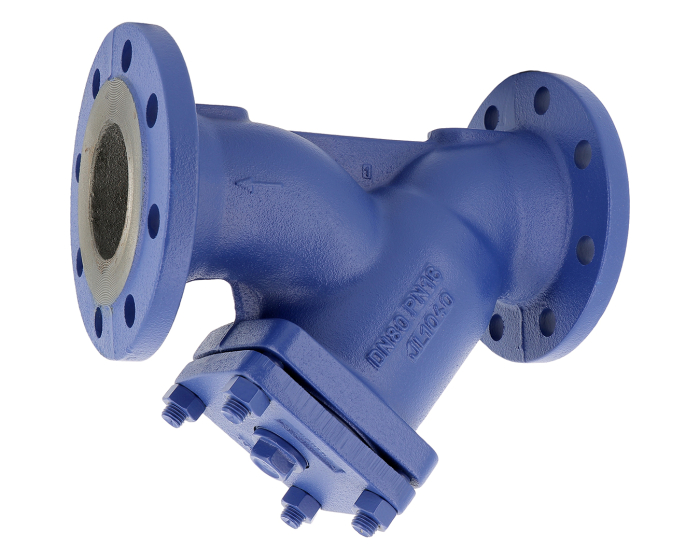

Cast iron Y-strainer 236 RF PN10/16 high temperature
The 236 series Y-strainer is made of cast iron, flanges PN16, stainless steel screen with removable strainer, and draining cap. For the filtration of high temperature fluids, hot water, steam, air, water treatment and irrigation.
Documentation
Spare parts
Details
PN16 flanged cast-iron strainer for high temperature specifications
Our reference 236 is a PN16 flanged strainer made in cast iron and designed to be used with high temperature specifications. With its CF8M stainless-steel body and its F304 stainless-steel screen, this model also benefits from a wide range of other technical characteristics, listed below:
- This strainer is available from DN15 to DN200
- The flanges are RF PN10/16 up to DN150, and PN16 for DN200
- The stainless-steel filter is removable
- The mesh is 1mm up to DN50, 1.25mm from DN65 to DN80, and 1.6mm up to DN200
- The strainer can be mounted in horizontal or vertical position with descendant fluid, respecting the flow direction indicated by the arrow
- It has a bolted bonnet with a threaded BSP draining cap
- It is coated with blue RAL 5002 painting, 100 µm thickness
- It can be used with operating temperatures ranging from -10 °C to +300 °C
- The maximum pressure is 16 bar, and 10 bar with steam
The PN16 flanged cast-iron strainer for high temperature specifications can be used with all common fluids, but is specifically indicated for steam systems.
Details
| DN inches NPS | 2'' |
|---|---|
| Option certificate 3.1 | Yes |
| DN metric | 50/60 |
| Bonnet material | Cast iron EN GJL-250 |
| Mounting direction | Horizontal or vertical |
| Screen material | AISI 304 stainless steel |
| CE risk category | III Module H |
| Paint coating thickness (µm) | 100.00 |
| EN face-to-face standard | EN 558 series 1 |
| DIN face-to-face standard | DIN 3202-1 F1 |
| Face to face standard | EN 558 Series 1. DIN 3202-1 F1. NF 29354 |
| Flange type | RF |
| Accessories for flanges | Carbon steel C35E |
| Steam | Yes |
| Application | Industry |
| Face to Face (mm) | 230.0 |
| Fluid | Steam |
| Gasket | Graphite |
| Kv (m³/h) | 64.7 |
| Body material | Cast iron |
| PS (bar) | 16 |
| Connections | Flanged PN10/16 |
| RAL (Paint) | 5002 |
| Screen (mesh) | 10/10° |
| TS max (°C) | 300 |
| TS min (°C) | -10 |
| Warranty period | 2 years |
| CE | Yes |
| Main product colour | Blue |
| Filter design | Y |
