Crossover female - Black - 85

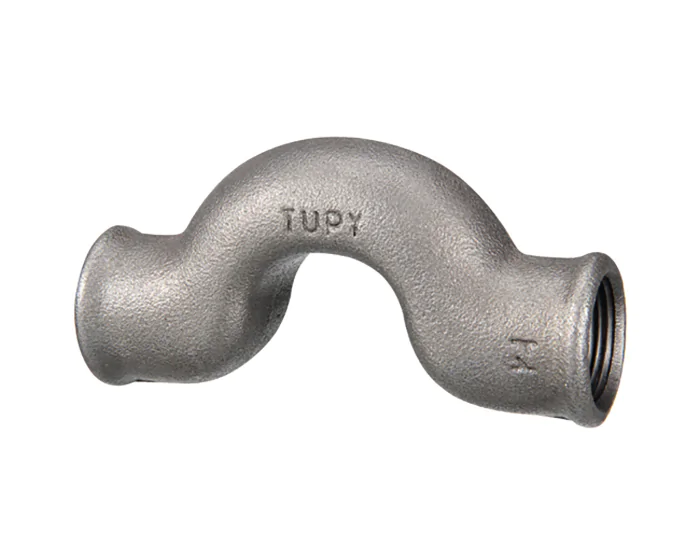

The 85N Series is a malleable cast iron fitting from the Tupy range, female/female humpback model, black for cold water, hot water, fire-fighting systems, heating, compressed air, sprinklers.
![main product photo](https://www.syveco.com/media/catalog/product/cache/582ed6748c10bbb99b236b27a124fb97/8/5/85N-raccord-fonte-dosdane-ff-noir.jpg)
Documentation
Details
DN inches NPS | 1/2'' |
---|---|
Construction standard | NF EN 10242 - ISO 49 |
Brand | GF |
Thread standard | ISO 7-1 Rp |
Type of coating | Black |
Material | Malleable iron EN-GJMW-400-5 |
Application | Industry |
Fluid | Cold water |
PS (bar) | 25 |
Connections | BSP FF |
TS max (°C) | 300 |
TS min (°C) | -20 |
Warranty period | 2 years |
Type of fitting | Malleable iron |
Fitting shape | Crossover |
Dimensions (Fitting) | 15 |
