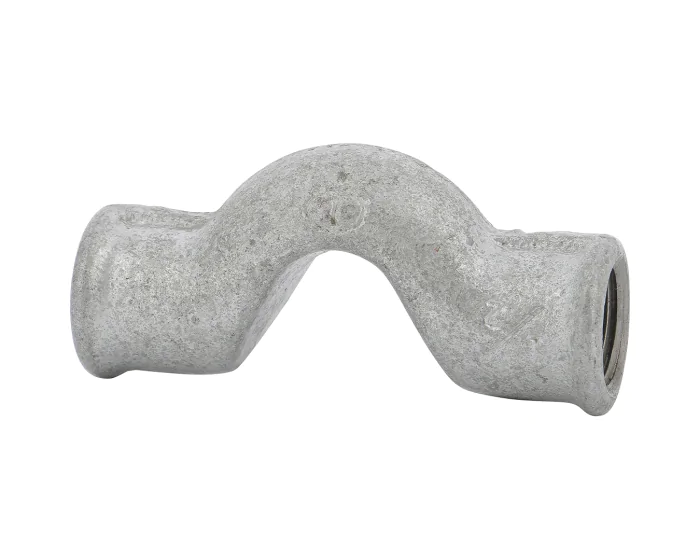

Crossover female - Galvanised - 85
The 85G Series is a malleable cast iron fitting from the Tupy range, female/female humpback model, galvanised for cold water, hot water, fire-fighting systems, heating, compressed air, sprinklers.
Documentation
Certificate of Conformity
pdf - 198.7 ko
Notice de montage
pdf - 128.8 ko
Instruction of mounting
pdf - 94.5 ko
Technical datasheet malleable cast iron fittings BSP
pdf - 1.1 mo
Details
Construction standard | NF EN 10242 - ISO 49 |
---|---|
Brand | GF |
Thread standard | ISO 7-1 Rp |
Type of coating | Hot-dip galvanised |
Material | Malleable iron EN-GJMW-400-5 |
Application | Industry |
Fluid | Cold water |
PS (bar) | 25 |
Connections | BSP FF |
TS max (°C) | 300 |
TS min (°C) | -20 |
Drinking water compatibility | Yes |
Warranty period | 2 years |
Type of fitting | Malleable iron |
Fitting shape | Crossover |
Dimensions (Fitting) | 15 |
