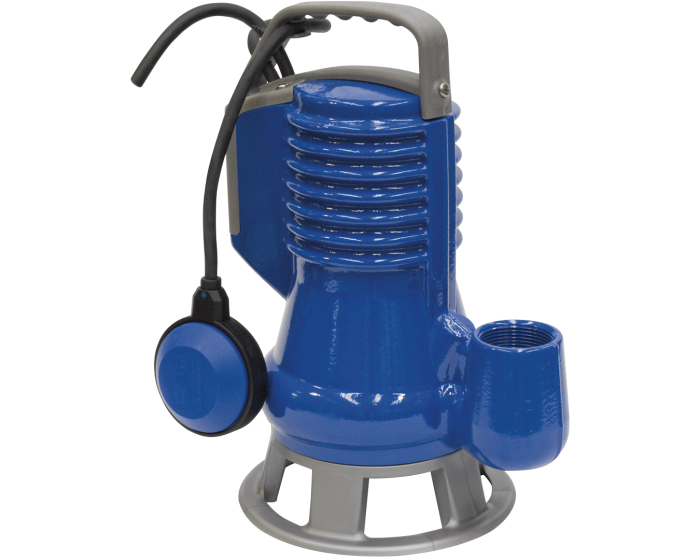

Dirty water pump DG Blue 40/50/75/100
Automatic submersible pump with full bore of 40 mm. Suitable for pre-treated water after a septic tank or for domestic wastewater excluding toilets, the DG BLUE is also frequently used for rainwater and seepage.
Documentation
Documentation commerciale
pdf - 1 mo
Notice de mise en service DG BLUE
pdf - 1.4 mo
Details
Electrical design | Single-phase with float |
---|---|
Packaging dimensions L x W x H (mm) | 242x200x402 |
Discharge orientation | Vertical outlet |
Automatic pump | Yes |
Weight with packaging (kg) | 12.8 |
Power output P2 (Kw) | 0.37 |
Cross-section (mm) | 40 |
Maximum temperature of discharged liquid (°C) | 40 |
Supply voltage | 1 x 230V |
Impeller type | Vortex |
Motor speed | 2900 rpm |
Cable length (m) | 10 |
Rated current (A) | 2.3 |
