Double offset butterfly valve 1114 + RE/RES pneumatic actuator

CE
The 1114 double offset butterfly valve is made stainless steel body and disc and a PTFE/graphite seat. It is actuated with an ALPHAIR pneumatic actuator. PS: 25 bar, TS: 210°C. Mounting between flanges PN16/25.
Choose your configuration
See all configurations
Réf.
CONF260970017008R
(Indicative price) €2,066.05

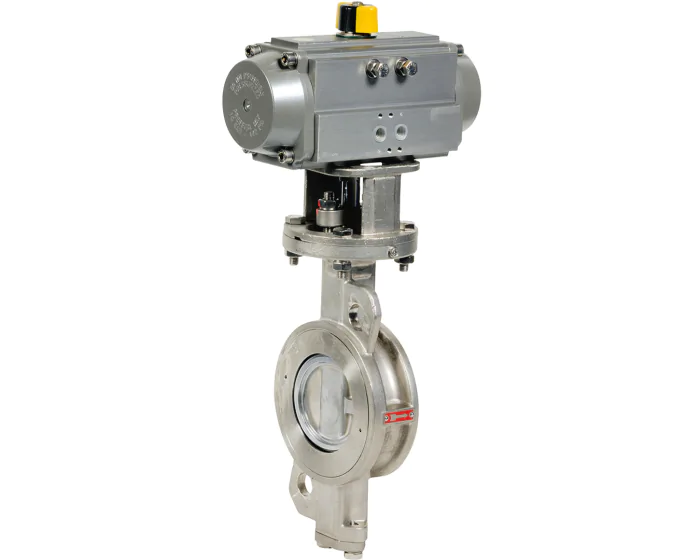

main product photo
Details
Details
Option certificate 3.1 Yes
Maximum delta P (bar) 10
Actuator BR 76
Operating angle (°) 90
Shaft/stem matérial Stainless steel 630 (17-4 PH)
Adjustable limit screws Yes
ATEX compatible Yes
Face to Face (mm) 43.0
Body material Stainless steel CF8M (1.4408)
ATEX protection mode EEx c
Number of ways 2
Disc material Stainless steel CF8M
Packing gland Graphite
PS (bar) 25
Connections Between flanges PN25
Seats PTFE-Graphite
Surface temperature TX
TS max (°C) 210
TS min (°C) -29
Butterfly valve design Double offset
Wafer/lug Wafer
ATEX zone 1.21.2.22
Warranty period 1 year
CE Risk category III
Range High performance butterfly valves
Fire safe Yes

Configurations

Product Reference Price Stock
Produit
Stainless steel double offset butterfly valve 1114 DN50 + RE76
Produit
Stainless steel double offset butterfly valve 1114 DN50 + RES86
Produit
Stainless steel double offset butterfly valve 1114 DN65 + RE76
Produit
Stainless steel double offset butterfly valve 1114 DN65 + RES86
Produit
Stainless steel double offset butterfly valve 1114 DN80 + RE76
Produit
Stainless steel double offset butterfly valve 1114 DN80 + RES101
Produit
Stainless steel double offset butterfly valve 1114 DN100 + RE86
Produit
Stainless steel double offset butterfly valve 1114 DN100 + RES116
Produit
Stainless steel double offset butterfly valve 1114 DN125 + RE101
Produit
Stainless steel double offset butterfly valve 1114 DN125 + RES126
Produit
Stainless steel double offset butterfly valve 1114 DN150 + RE116
Produit
Stainless steel double offset butterfly valve 1114 DN150 + RES146
Produit
Stainless steel double offset butterfly valve 1114 DN200 + RE126
Produit
Stainless steel double offset butterfly valve 1114 DN200 + RES161
Produit
Stainless steel double offset butterfly valve 1114 DN250 + RE126
Produit
Stainless steel double offset butterfly valve 1114 DN250 + RES181
Produit
Stainless steel double offset butterfly valve 1114 DN300 + RE146
Produit
Stainless steel double offset butterfly valve 1114 DN300 + RES201

18 Item(s)
