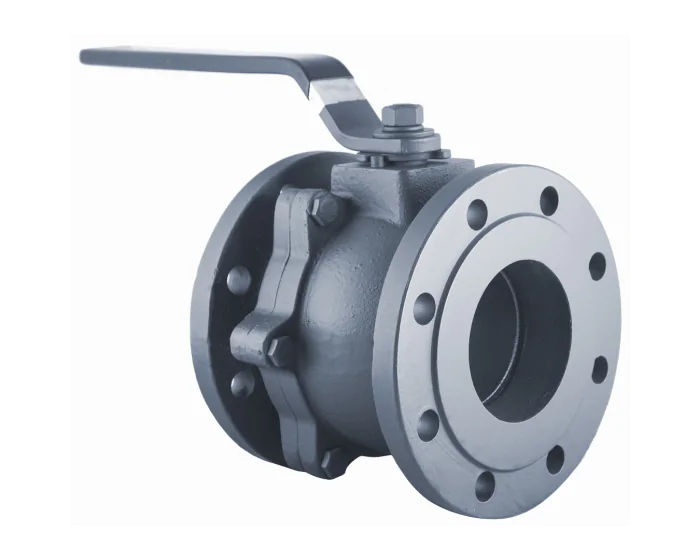

Ductile iron ball valve 507D RF PN16 EN558 series 27
The 507D Series valve is a full bore ductile iron ball valve. It is manufactured to EN 558 series 27 face to face, suitable for heating, cooling, irrigation and compatible with ATEX Zone 1, 21, 2, and 22. Mount actuators easily with ISO 521
Documentation
Details
| Opening device | Handle |
|---|---|
| Face to Face (mm) | 140 |
| Body material | Ductile iron |
| Number of ways | 2 |
| Bore | Full |
| PS (bar) | 16 |
| Connections | Flanged PN10/16 |
| Seats | PTFE |
| TS max (°C) | 120 |
| TS min (°C) | -10 |
| Warranty period | 2 years |
