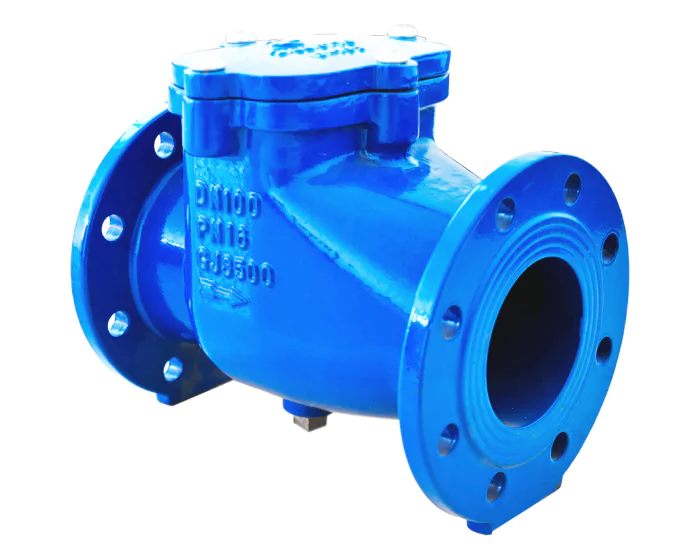

Ductile iron check valve 357 - EPDM swing plate - PN16
Syveco offers the Series 357 check valve, ductile iron body EN-GJS 500-7, single plate EPDM-coated ductile iron, ACS, PN10/16 flanges, with drain, Epoxy painted,
Documentation
Details
| Option certificate 3.1 | Yes |
|---|---|
| Mounting direction | Horizontal or vertical upward flow |
| Type of paint | Epoxy |
| EN face-to-face standard | EN 558 Series 48 |
| DIN face-to-face standard | DIN 3202 F6 |
| Tightness test standard | EN 12266-1. Rate A |
| Closure member material | EPDM coated cast iron |
| Application | Water supply and distribution network |
| Face to Face (mm) | 200.0 |
| Fluid | Hot water / Cold water / Drinking water / Compressed air / Domestic fuel |
| Body material | Ductile iron |
| PS (bar) | 16 |
| TS max (°C) | 80 |
| TS min (°C) | -10 |
| Drinking water compatibility | Yes |
| Warranty period | 2 years |
| Main product colour | Blue |
| Obturator type | Plate |
