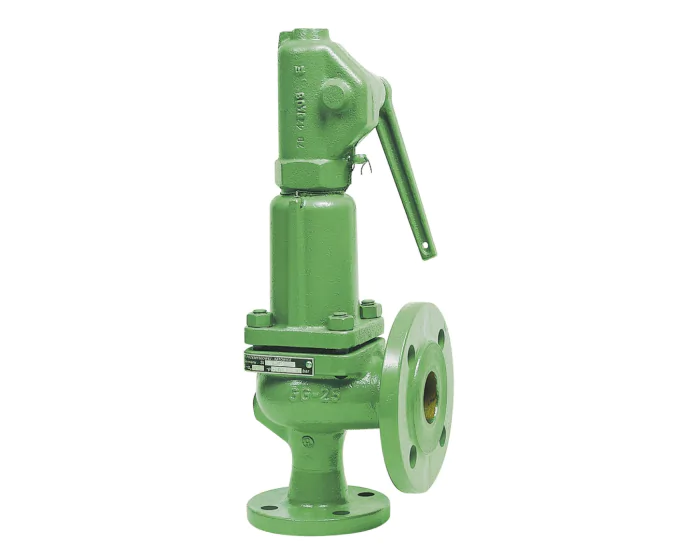

Ductile iron flanged safety valve 6301 S PN40 DN20/32
The Type 6301S Spring Safety Valve in ductile iron is designed to protect installations against depletion. It operates automatically and closes when pressure conditions return to normal.
Documentation
Details
| Option certificate 3.1 | Yes |
|---|---|
| Test device | by lever |
| DN (Input) | 20 |
| DN (Output) | 32 |
| Exhaust system | pipe outlet |
| Body material | Cast iron |
| Bearing | Metal/metal |
| Connections | Flanged PN40 |
| Maximum setting (bar) | 0 |
| Minimum setting (bar) | 0.5 |
| TS max (°C) | 350 |
| TS min (°C) | -10 |
| Warranty period | 1 year |
| CE | Risk category IV |
