Documentation
Details
| Mounting direction | Vertical |
|---|---|
| Thread standard | ISO 228-1 |
| Closure member material | Brass CW617N |
| Strainer basket material | Brass CW617N |
| Application | Water supply and distribution network |
| DN | 50 |
| Fluid | Cold water |
| Gasket | NBR |
| Body material | Brass CW617N |
| PS (bar) | 8 |
| Connections | BSP F |
| Seats | Brass CW617N |
| Screen (mesh) | 40/10° |
| TS max (°C) | 90 |
| TS min (°C) | 0 |
| Warranty period | 2 years |
| Total height (mm) | 121 |
| Obturator type | Spring |

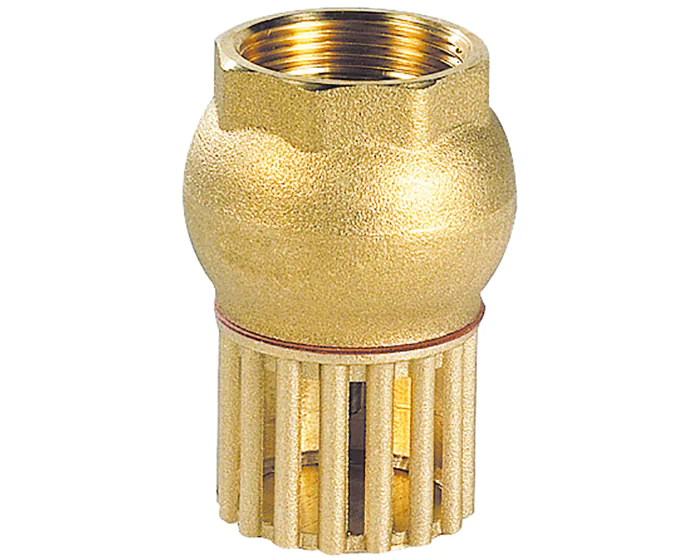

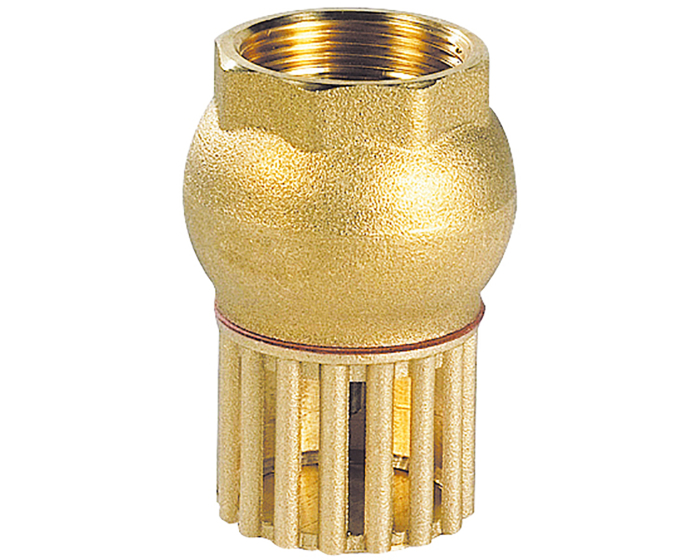

Full brass foot check valve 304
Full brass foot check valve 304 with brass body, obturator, and NBR gasket. Suitable for water supply networks, BSP female connections, and brass strainer. Operates up to 8 bar pressure, ensuring reliable flow control and pump protection.
