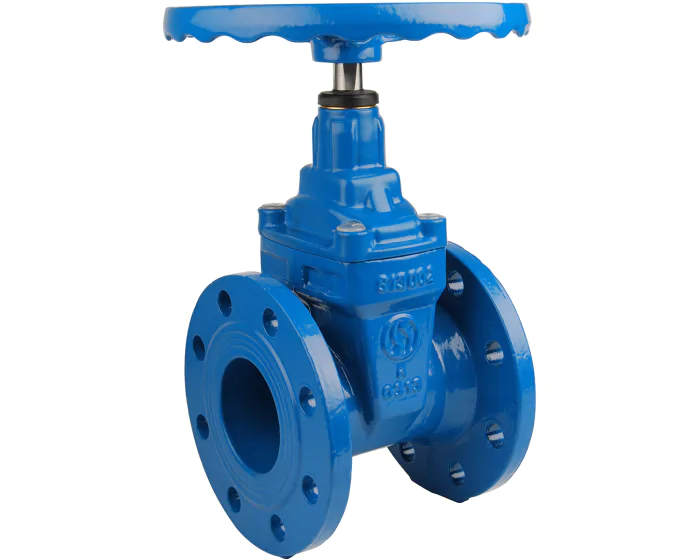

Gate valve 181 EPDM wedge PN10/16 DIN F4
The 181 series gate valve, rubber, ACS, counterclockwise closing, EPDM gate, DIN 3202 F4 gap for drinking water, water treatment and supply and irrigation
![main product photo](https://www.syveco.com/media/catalog/product/cache/582ed6748c10bbb99b236b27a124fb97/1/8/181-vanne-opercule-caoutchouc-ACS-fsh-f4-epdm.jpg)
Documentation
Details
DN inches NPS | 2'' |
---|---|
Option certificate 3.1 | Yes |
Bonnet material | Cast iron EN GJS-500-7 |
Construction standard | DIN EN 1171 |
Type of paint | Epoxy |
Paint coating thickness (µm) | 250.00 |
DIN face-to-face standard | DIN 3202-1 F4 |
Face to face standard | EN 558 series 14. DIN 3202-1 F4 |
Tightness test standard | EN 12266-1. Rate A |
Bonnet | Bolted |
Closing direction | Clockwise (CW) |
Opening device | Handwheel |
Application | Water supply and distribution network |
Shaft/stem matérial | Stainless steel AISI 304 |
Torque (Nm) | 20.0 |
Diameter of passage | 50.00 |
DN | 50 |
Face to Face (mm) | 150.0 |
Kv (m³/h) | 229.0 |
Body material | Ductile iron |
Gate material | Cast iron EN GJS-500-7 + EPDM |
Bore | Full |
PS (bar) | 16 |
Connections | Flanged PN10/16 |
RAL (Paint) | 5005 |
Seats | Cast iron |
TS max (°C) | 70 |
TS min (°C) | -10 |
Warranty period | 2 years |
Type of stem | Non-rising |
Main product colour | Blue |
