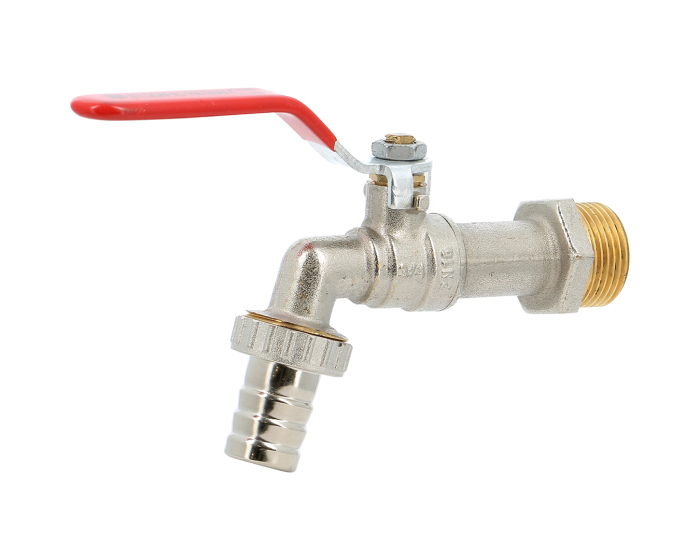

Nickel-plated bibcock valve 696
Nickel-plated brass CW617N 4MS quarter-turn ball valve, nose fitting with integrated jetbreaker, compatible with drinking water networks thanks to the ACS certificate of conformity
Documentation
Certificat ACS Vannes de Puisage Laiton Nickelé
pdf - 266.7 ko
Certificate of Conformity
pdf - 196.8 ko
Fiche technique robinet puisage laiton ACS
pdf - 469.7 ko
Notice montage vanne à sphere laiton
pdf - 318.4 ko
Installation operating manual brass ball valve
pdf - 259.2 ko
Technical datasheet bibcock brass ball valve ACS
pdf - 454.4 ko
Details
DN inches NPS | 1/2'' |
---|---|
DN metric | 15/21 |
Thread standard | ISO 228-1 |
Stem sealing material | PTFE gland packing |
Type of coating | Nickel-plated |
Opening device | Handle |
DN | 15 |
DN (Output) | 3/4'' |
Face to Face (mm) | 90.0 |
Fluid | Cold water |
Body material | Brass CW617N |
Number of ways | 2 |
PS (bar) | 16 |
Connections | BSP MM |
Ball material | Chrome-plated brass CW617N |
TS max (°C) | 60 |
TS min (°C) | 0 |
Warranty period | 2 years |
Hose nipple diameter (mm) | 18.0 |
Handle material | Carbon steel |
Handle type | Red lever |
