Pad dimensions for actuation according to ISO 5211

Legend

1 Part-turn actuator

Dimensions in millimeters.

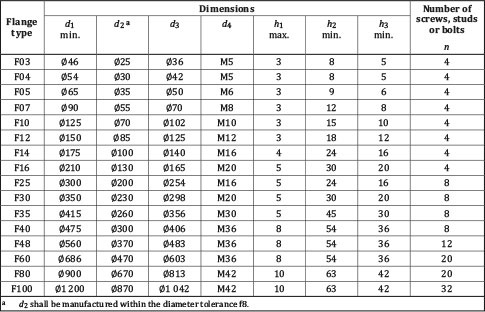

Table showing pad dimensions for actuation according to ISO 5211 standard.Table showing pad dimensions for actuation according to ISO 5211 standard.
