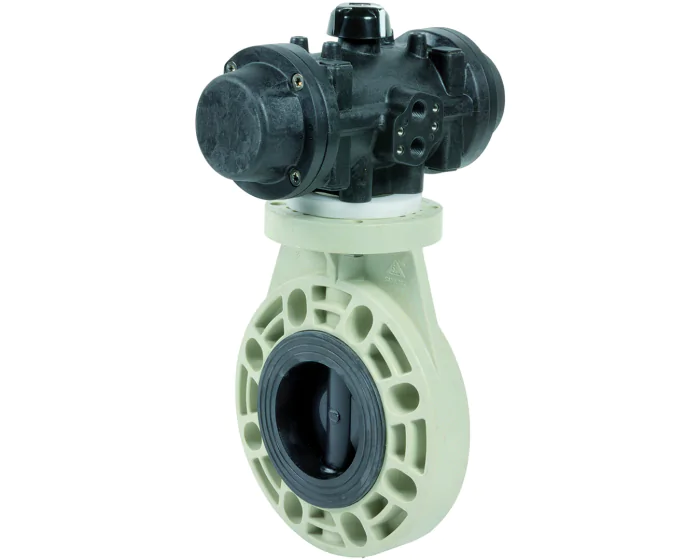

PP butterfly valve PL1 + PP/RES pneumatic actuator
Butterfly valve body and disc in PP, seat in EPDM. Pneumatic actuator with Prisma actuator in PA. PS : 10 bar - TS : 0 / +55°C. Mounting between flanges PN10.
Documentation
Certificate of Conformity
pdf - 189.7 ko
Data sheet butterfly valve PL1-PP / gaskets EPDM + PRISMA
pdf - 782.9 ko
Spare parts
Details
Option certificate 3.1 | No |
---|---|
Maximum delta P (bar) | 10 |
Actuator | PP00 |
Operating angle (°) | 90 |
Shaft/stem matérial | Stainless steel 304 |
Adjustable limit screws | No |
ATEX compatible | No |
Face to Face (mm) | 44.0 |
Seat | EPDM |
Body material | PP |
Number of ways | 2 |
Disc material | PPGF |
PS (bar) | 10 |
Connections | Between flanges PN10 |
TS max (°C) | 80 |
TS min (°C) | 10 |
Butterfly valve design | Concentric |
Wafer/lug | Wafer |
Warranty period | 1 year |
Range | Water - Water treatment |
