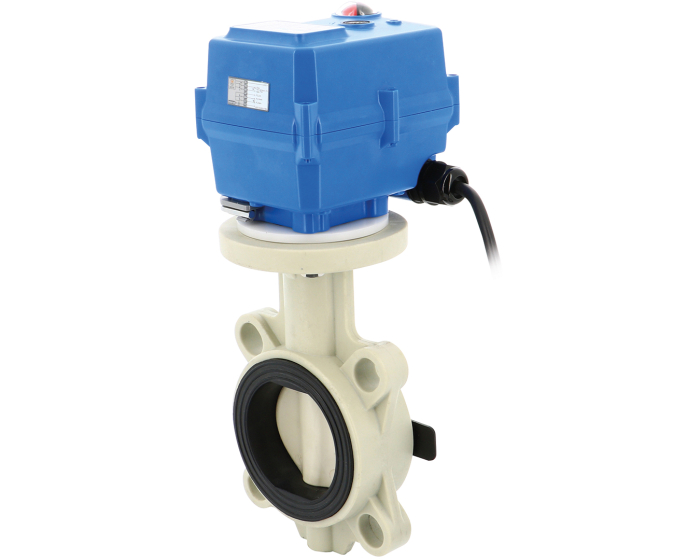

PP butterfly valve PL2 + TCR electri actuator
PL2 butterfly valve with glass fibre reinforced PP body, PP-H disc and EPDM seat. Installation between flanges PN 10. PS: 10 bar. TS: +10°C / + 100°C. Actuation with TCR electric actuator. IP 67 light duty.
Documentation
Details
| Option certificate 3.1 | No |
|---|---|
| Maximum delta P (bar) | 10 |
| Shaft/stem matérial | Stainless steel 420b |
| ATEX compatible | No |
| Manual override | By key |
| Declutchable | No |
| Duty service | S4 duty service - 50% |
| Face to Face (mm) | 48 |
| 3D indicator | Yes |
| Protection index (IP) | IP 67 |
| Seat | EPDM |
| Body material | PP |
| Number of ways | 2 |
| Disc material | PP |
| PS (bar) | 10 |
| Connections | Between flanges PN10 |
| Anti-condensation heater | Standard |
| Positive safety | No |
| Function | On-off |
| Electric actuator type | TCR05-N |
| Electric actuator series | TCR Series |
| TS max (°C) | 100 |
| TS min (°C) | 10 |
| Butterfly valve design | Concentric |
| Wafer/lug | Wafer |
| Warranty period | 1 year |
| Electrical connection | By cable 1.5 m |
