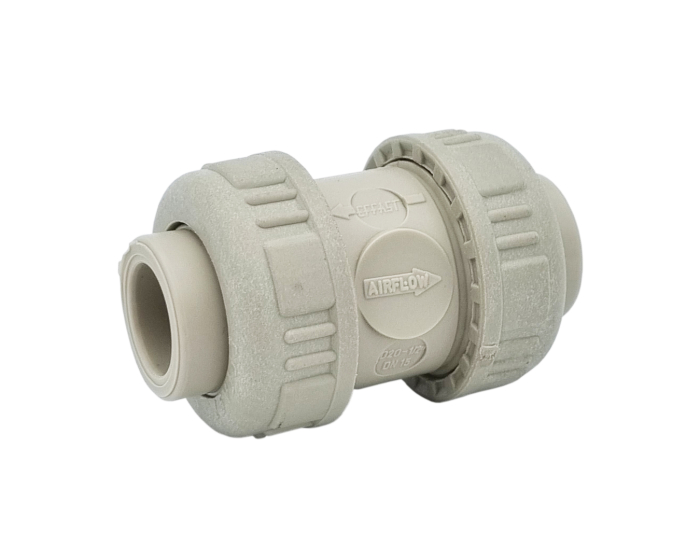

PP check valve double union CV1 EPDM seat

Double union check valve designed with PP body and disc, EPDM gasket. PS: 10 bar. TS: +10°C / +80°C. Spring in AISI 302 stainless steel. Horizontal or vertical mounting. Union fittings with female threaded ends to be welded.

Choose your configuration

d (mm)

See all configurations

Réf.

CONF5510SC015EF

(Indicative price) €92.50

Quantity

Skip to the end of the images gallery

Skip to the beginning of the images gallery

Documentation

Certificate of Conformity pdf - 187.3 ko

Fiche technique CV1-PP / joints EPDM Clapet anti-retour double union pdf - 695.9 ko

Data sheet CV1-PP / Gaskets EPDM double union check valve pdf - 690.9 ko

Details

Details
Option certificate 3.1	No
Face to Face (mm)	80.0
Gasket	EPDM
Body material	PP
PS (bar)	10
Connections	Polyfusion socket union
TS max (°C)	80
TS min (°C)	10
Warranty period	1 year

Configurations

Product	Reference	Price	Stock
Produit PP check valve double union CV1 DN15 d20 EPDM seat & gaskets	Référence 5510SC015EF	P.U HT €92.50	Disponibilité Currently not in stock
Produit PP check valve double union CV1 DN20 d25 EPDM seat & gaskets	Référence 5510SC020EF	P.U HT €111.10	Disponibilité Currently not in stock
Produit PP check valve double union CV1 DN25 d32 EPDM seat & gaskets	Référence 5510SC025EF	P.U HT €140.72	Disponibilité 2 pcs available in stock
Produit PP check valve double union CV1 DN32 d40 EPDM seat & gaskets	Référence 5510SC032EF	P.U HT €165.68	Disponibilité Currently not in stock
Produit PP check valve double union CV1 DN40 d50 EPDM seat & gaskets	Référence 5510SC040EF	P.U HT €222.05	Disponibilité Currently not in stock
Produit PP check valve double union CV1 DN50 d63 EPDM seat & gaskets	Référence 5510SC050EF	P.U HT €268.40	Disponibilité Currently not in stock
