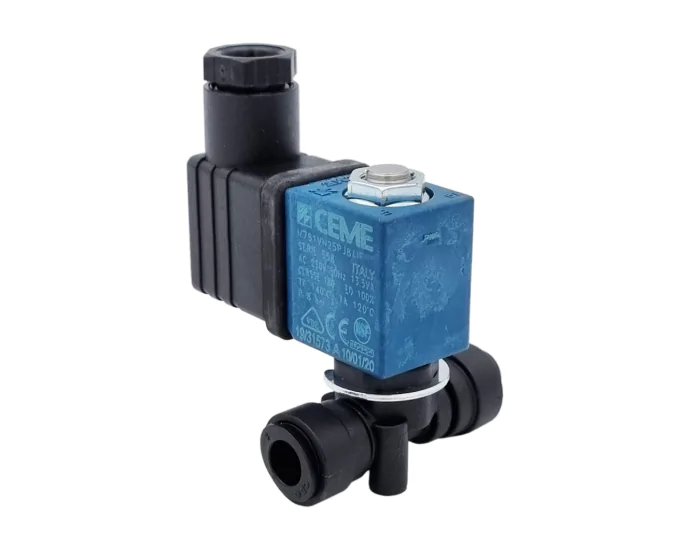

PPA solenoid valve EV 791 direct acting with push fit connection
The solenoid valve type ELV 791 is a normally closed (NC) direct acting 2/2-way valve made of thermoplastic.
Documentation
Certificate of Conformity
pdf - 195.8 ko
Fiche technique EV 791 - Electrovanne à raccords instantanés
pdf - 211.5 ko
Details
Option certificate 3.1 | No |
---|---|
Maximum delta P (bar) | 8 |
Minimum delta P (bar) | 0.00 |
Coil type | B4 |
Connector | T22 |
Face to Face (mm) | 55.0 |
Fluid | Water / Air / Neutral gases |
Gasket | FKM |
Body material | PPA |
Position | Normally closed |
PS (bar) | 8 |
Connections | Quick fitting |
TS max (°C) | 65 |
TS min (°C) | 5 |
Solenoid valve type | Direct acting |
Solenoid pilot valve ways | 2/2 |
Warranty period | 1 year |
CE | Excluded (Article 4. §3) |
Electrical connection | T22 connector |
