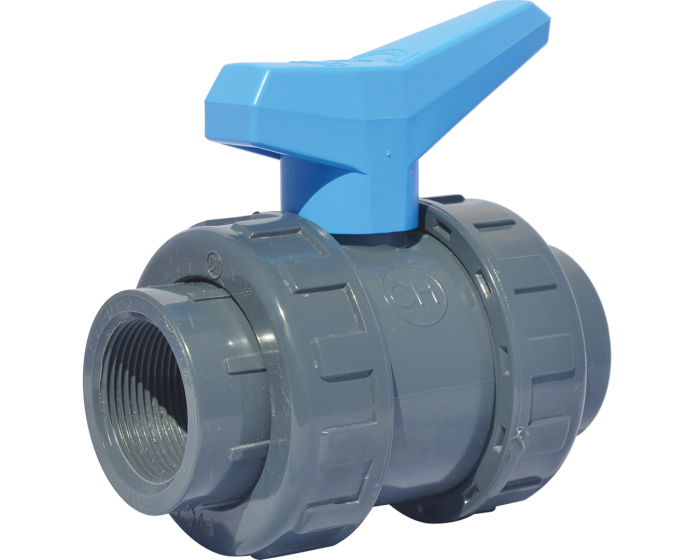

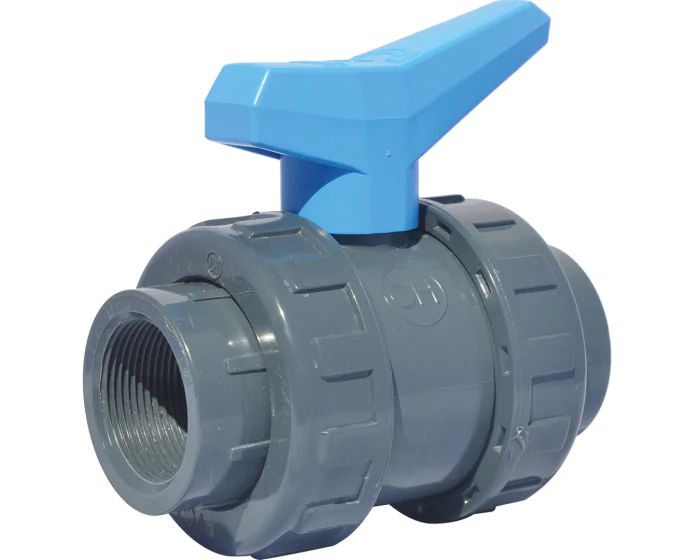

PVC ball valve 584 with threaded unions ends
The PVC ball valve 584 with threaded unions ends, featuring a durable PVC-U body and ball, EPDM double O-ring seals, and a blue polypropylene handle, ensures reliable shut-off for cold water in HVAC, irrigation, and building systems.
Documentation
Certificate of Conformity
pdf - 190.5 ko
Fiche technique vanne à sphère PVC bâtiment taraudée BSP
pdf - 513.7 ko
Notice montage vanne à sphere laiton
pdf - 318.4 ko
Installation operating manual brass ball valve
pdf - 259.2 ko
Details
DN metric | 15/21 |
---|---|
Thread standard | ISO 228-1 |
Stem sealing material | EPDM double O-ring |
Opening device | Handle |
Application | Building / HVAC / Irrigation |
Shaft/stem matérial | PVC-U |
DN | 15 |
Face to Face (mm) | 94.5 |
Fluid | Cold water |
Body material | PVC-U |
Number of ways | 2 |
Bore | Full |
PS (bar) | 16 |
Connections | BSP FF |
Seats | HDPE |
Ball material | PVC-U |
TS max (°C) | 60 |
TS min (°C) | 0 |
Warranty period | 2 years |
Handle material | Polypropylene |
Handle type | Blue handle |
