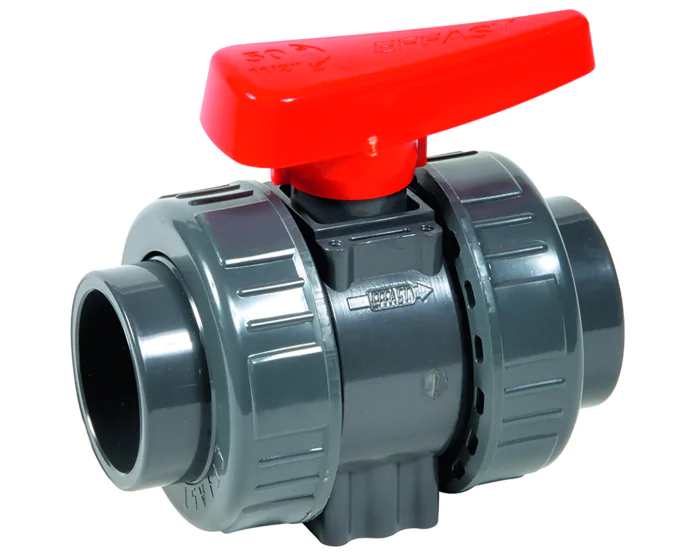

PVC-U ball valve B1
Ball valve body, ball and shaft: PVC-U, gasket: EPDM, seats: PTFE. PS: 16 bar- TS: 0 / +60°C. ACS approval for drinking water. Union fittings with female end to be glued.
Documentation
Certificate of Conformity
pdf - 188.3 ko
Details
Option certificate 3.1 | No |
---|---|
ATEX compatible | No |
d (mm) | 20 |
DN | 15 |
Gasket | EPDM |
Body material | PVC-U |
Number of ways | 2 |
PS (bar) | 16 |
Connections | Solvent cement socket connection |
Seats | PTFE |
TS max (°C) | 60 |
TS min (°C) | 0 |
Ball valve design | 3-piece body |
Warranty period | 1 year |
