Details
| Option certificate 3.1 | No |
|---|---|
| Maximum delta P (bar) | 10 |
| Actuator | PP10 |
| Operating angle (°) | 90 |
| Shaft/stem matérial | Stainless steel 420b |
| Adjustable limit screws | No |
| ATEX compatible | No |
| Face to Face (mm) | 48 |
| Seat | EPDM |
| Body material | PVC-U |
| Number of ways | 2 |
| Disc material | PVC-U |
| PS (bar) | 10 |
| Connections | Between flanges PN10 |
| TS max (°C) | 60 |
| TS min (°C) | 0 |
| Butterfly valve design | Concentric |
| Wafer/lug | Wafer |
| Warranty period | 1 year |
| Range | Water - Water treatment |

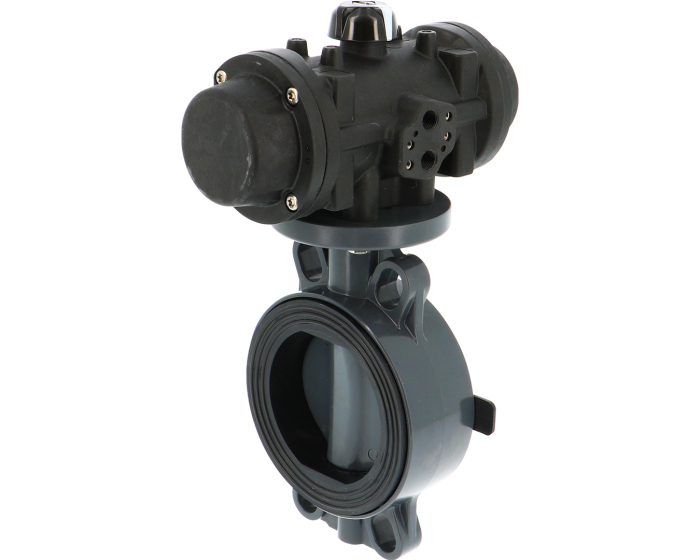

PVC-U butterfly valve PL2 + PP/PPS pneumatic actuator
PL2 butterfly valve with PVC-U body, PVC disc and EPDM seat. Installation between flanges PN 10. PS: 10 bar. TS : 0°C / + 60°C. Actuation with pneumatic actuator sized for 6 bar air supply.
