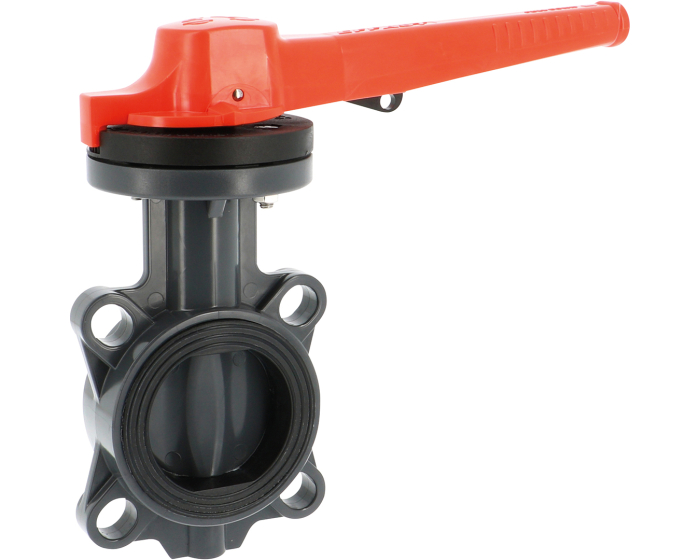

PVC-U/FKM butterfly valve PL2
PL2 butterfly valve with PVC-U body, PVC disc and FKM seat. Installation is between flanges PN 10. PS: 10 bar. TS: 0°C / +60°C. Has a lockable ABS notched handle on DN 65 to DN 200.
Documentation
Certificate of Conformity
pdf - 189 ko
Fiche technique Robinet à papillon PL2-PVC-U / joints FPM.
pdf - 387.2 ko
Data sheet butterfly valve PL2-PVC-U / gaskets FPM.
pdf - 387.9 ko
Details
Option certificate 3.1 | No |
---|---|
Shaft/stem matérial | Stainless steel 420b |
ATEX compatible | No |
Face to Face (mm) | 48 |
Gasket | FKM |
Seat | FKM |
Body material | PVC-U |
Number of ways | 2 |
Disc material | PVC-U |
PS (bar) | 10 |
Connections | Flanged PN10 |
TS max (°C) | 60 |
TS min (°C) | 0 |
Butterfly valve design | Concentric |
Wafer/lug | Wafer |
Warranty period | 1 year |
