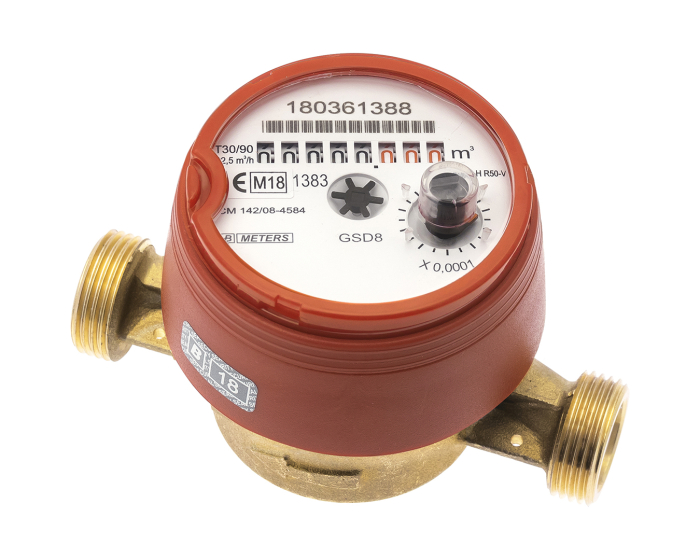

Single jet water meter for hot water MID R100
Discover the MID 1702 series single flow water meter from the BMeters range, hot water model, ACS 4MS certified, brass body, direct reading on 8 rollers, IP68 protection for water distribution networks
Documentation
Details
Construction standard | MID 2014/32/EU |
---|---|
Vertical transition flow rate (L/h) | 80.00 |
Horizontal transition flow rate (L/h) | 40.00 |
Meter type | Individual water meter |
Type of transmission | Radio / Wired M-bus |
Horizontal/vertical mounting | Horizontal and vertical |
Brand | B METERS |
Transmission | Radio Walk By / Fixed / wired M-Bus |
Male output | 3/4'' |
Dial | Dry |
Jet | Single jet |
Thread standard | ISO 228-1 |
Application | Heating / Sanitary / Drinking water / Air conditioning / Irrigation |
Face to Face (mm) | 110.0 |
Body material | Brass |
PS (bar) | 16 |
TS max (°C) | 30 |
TS min (°C) | 90 |
Warranty period | 2 years |
Nominal flow rate (m³/h) | 2.50 |
Accuracy class meters | MID R100H - MID R50VH |
