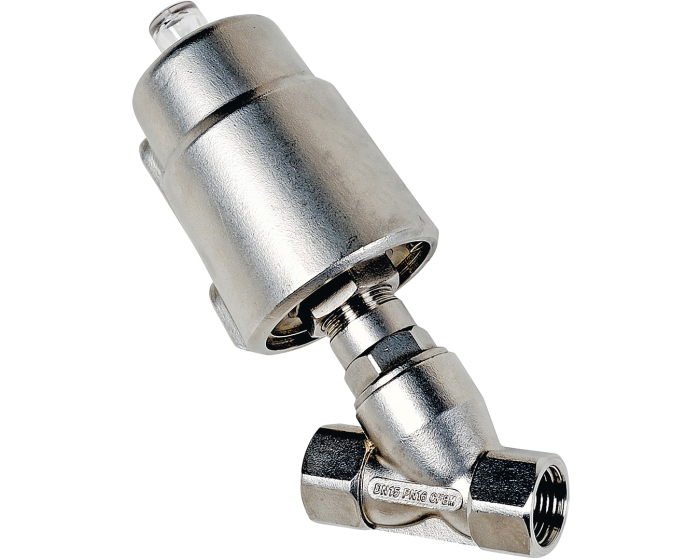

Stainless steel actuated angle seat valve 1434 normally closed BSP
The HF Type 1434 pneumatic valve is a full bore, normally closed (NC), all stainless steel, slanted valve for automatic shut-off of fluid systems, prevents water hammer.
Documentation
Details
| Option certificate 3.1 | No |
|---|---|
| Maximum delta P (bar) | 16 |
| ATEX compatible | No |
| DN | 1/2'' |
| Face to Face (mm) | 68.0 |
| Gasket | PTFE |
| Kv (m³/h) | 4.70 |
| Body material | Stainless steel CF8M (1.4408) |
| Bearing | PTFE |
| Position | Normally closed |
| PS (bar) | 16 |
| Connections | BSP FF |
| Control head | 50 |
| TS max (°C) | 180 |
| TS min (°C) | -10 |
| Flow entry | Below the seat |
| Solenoid pilot valve ways | 2/2 |
| Warranty period | 1 year |
| CE | Excluded (Article 4. §3) |
