main product photo
Documentation
Fiche technique 515 Vanne inox split-body à brides ANSI 150 + ADA pdf - 4.5 mo
Spare parts
Details
Details
Option certificate 3.1 Yes
Maximum delta P (bar) 10
Actuator ADA 20
Operating angle (°) 90
Shaft/stem matérial Stainless steel 316
Adjustable limit screws Yes
ATEX compatible Yes
Face to Face (mm) 108.0
Body material Stainless steel CF8M (1.4408)
ATEX protection mode EEx c
Number of ways 2
Bore Full
Packing gland Graphite
PS (bar) 20
Seats PTFE
Ball material Stainless steel 316
Surface temperature TX
TS max (°C) 230
TS min (°C) -50
Pneumatic actuator type Double acting
Ball valve design 2-piece body
ATEX zone 1.21.2.22
Warranty period 1 year
CE Excluded (Article 4. §3)
Range JC Valves
Fire safe Yes

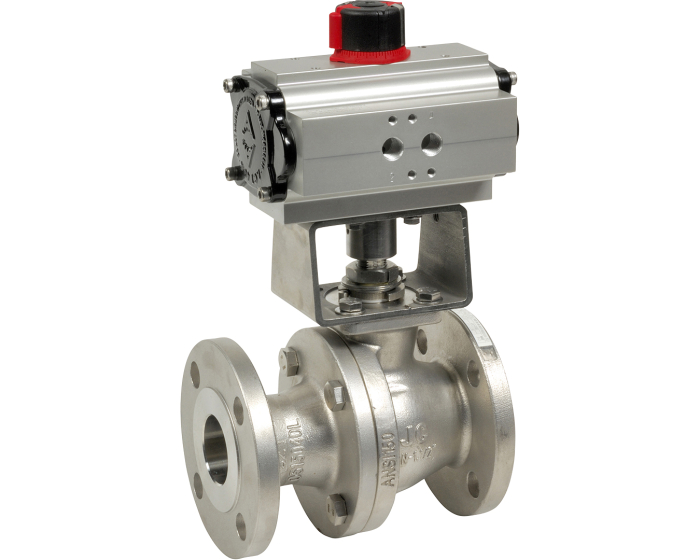

Stainless steel ball valve 515IIT + ADA/ASR pneumatic actuator

The 515IIT series JC VALVES stainless steel ball valve has a CF8M body and ball, and PTFE seats. It is actuated with pneumatic actuation ACTREG ADA/ASR, up to DN200.
Choose your configuration
See all configurations
Réf.
CONF515IIT015015100
(Indicative price) €875.93

Configurations

Product Reference Price Stock
Produit
Stainless steel ball valve 515IIT DN15 + ADA20
Produit
Stainless steel ball valve 515 IIT ANSI 150 1/2'' + ASR40
Produit
Stainless steel ball valve 515 IIT ANSI 150 3/4'' + ADA20
Produit
Stainless steel ball valve 515 IIT ANSI 150 3/4'' + ASR40
Produit
Stainless steel ball valve 515 IIT ANSI 150 1'' + ADA40
Produit
Stainless steel ball valve 515 IIT ANSI 150 1'' + ASR80
Produit
Stainless steel ball valve 515IIT DN40 + ADA80
Produit
Stainless steel ball valve 515IIT DN40 + ASR130
Produit
Stainless steel ball valve 515 IIT ANSI 150 2'' + ADA80
Produit
Stainless steel ball valve 515 IIT ANSI 150 2'' + ASR200
Produit
Stainless steel ball valve 515 IIT ANSI 150 2''1/2 + ADA130
Produit
Stainless steel ball valve 515 IIT ANSI 150 2''1/2 + ASR300
Produit
Stainless steel ball valve 515IIT DN80 + ADA200
Produit
Stainless steel ball valve 515IIT DN80 + ASR500
Produit
Stainless steel ball valve 515 IIT ANSI 150 4'' + ADANSI 300
Produit
Stainless steel ball valve 515 IIT ANSI 150 4'' + ASR500
Produit
Stainless steel ball valve 515 IIT ANSI 150 6'' + ADA500
Produit
Stainless steel ball valve 515IIT DN150 + ASR1200
Produit
Stainless steel ball valve 515 IIT ANSI 150 8'' + ADA2500
Produit
Stainless steel ball valve 515 IIT ANSI 150 8'' + ASR2500

20 Item(s)
